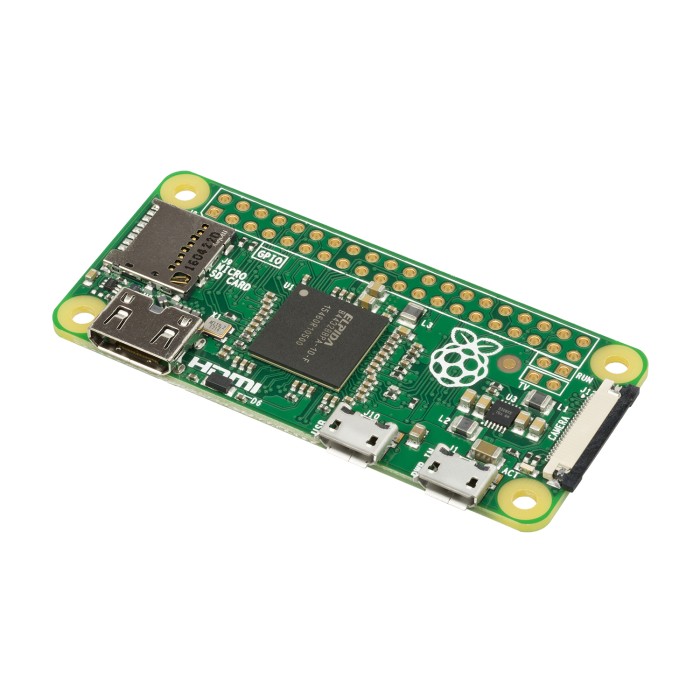

Raspberry Pi Zero v1.3 Development Board

Raspberry Pi Zero V1.3 Development Board is a compact single-board computer for space-saving electronics and robotics projects. It features a Broadcom BCM2835 processor with a 1GHz ARM11 core and 512MB LPDDR2 SDRAM. The board includes 40 GPIO pins and a microSD card slot for operating system installation. It also provides a mini HDMI port with 1080p60 video output and two micro USB connectors for data and power. Raspberry Pi Zero V1.3 is designed with a small form factor and low power consumption for compact builds.

Features of Raspberry Pi Zero V1.3 Development Board

• Compact single-board format
• Broadcom BCM2835 processor
• 1GHz ARM11 core
• 512MB LPDDR2 SDRAM
• 40 GPIO pins
• Mini HDMI video output
• Two micro USB connectors
• MicroSD card slot
• Two RUN pins
• Low power consumption

Specifications of Raspberry Pi Zero V1.3 Development Board

• Dimensions: 5 × 65 × 30 mm
• Weight: 9 grams
• Processor: Broadcom BCM2835, 1GHz ARM11 core
• RAM: 512MB LPDDR2 SDRAM
• GPIO Pins: 40 pins, similar to A+/B+/2B models but more closely spaced
• MicroSD Card Slot: For OS installation
• Video Output: Mini HDMI supporting 1080p60
• USB Ports: Two micro USB connectors (one for data, one for power)
• Power Consumption: Approximately 160mA
• RUN Pins: Two pins for reset button connection
• Networking: No built-in Ethernet port; internet access via USB Wi-Fi dongle

How to Use Raspberry Pi Zero V1.3 Development Board

1. Install the operating system on a microSD card.
2. Insert the microSD card into the board.
3. Connect power through the micro USB power port.
4. Use the mini HDMI port and GPIO pins for your project connections.

More Info

• 40 GPIO pins use a more compact layout.
• The board has no built-in Ethernet port.
