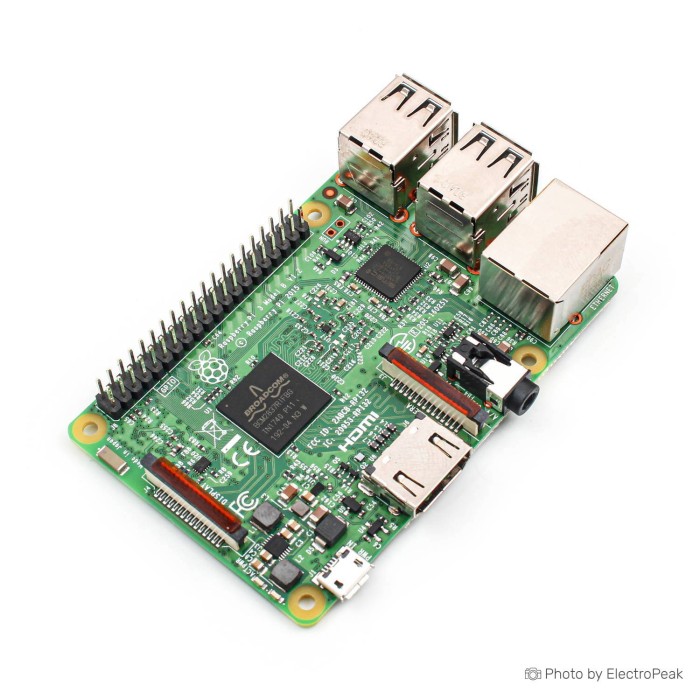

Raspberry Pi 3 Board Model B

Raspberry Pi 3 Board Model B is a single-board computer for electronics, robotics, and IoT projects. It combines a Broadcom BCM2837 SoC with an ARM Cortex-A53 processor for general-purpose computing. The board includes on-board wireless networking and Bluetooth support for integrated connectivity. It also provides multiple ports and a 40-pin GPIO header for expansion and development. This Raspberry Pi 3 Model B is a used item in near-new condition.

Features of Raspberry Pi 3 Board Model B

• Quad-core ARM Cortex-A53 processor
• On-board Wi-Fi connectivity
• Bluetooth 4.1 support
• 40-pin GPIO header
• Multiple expansion ports

Specifications of Raspberry Pi 3 Board Model B

• Processor: Broadcom BCM2837 SoC
• CPU: ARM Cortex-A53, 1.2GHz (quad-core)
• GPU: Broadcom VideoCore IV
• RAM: 1GB LPDDR2 (900 MHz)
• Networking: Ethernet 10/100, wireless 802.11n at 2.4GHz
• Bluetooth: Bluetooth 4.1 Classic, Bluetooth Low Energy (BLE)
• Storage support: microSD
• GPIO: 40-pin header (fully connected)
• Ports: HDMI, 3.5mm analog audio and video jack, 4× USB 2.0, Ethernet, CSI, DSI
• Operating voltage: 5V
• Weight: 41.2g
• Dimensions: 86.9mm x 58.5mm x 19.1mm

How to Use Raspberry Pi 3 Board Model B

1. Install a microSD card.
2. Connect the required peripherals through the available ports.
3. Power the board with 5V input.

More Info

• Used item in near-new condition.
• Single-board computer for development projects.
