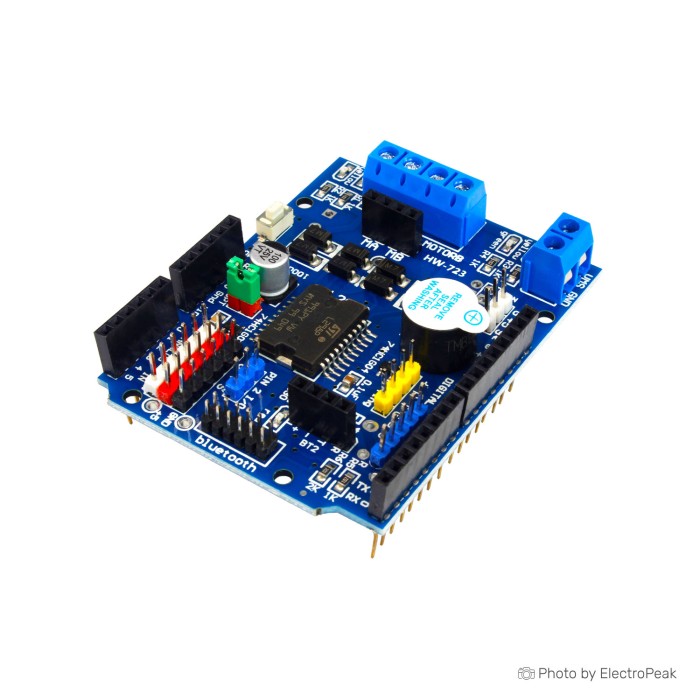

L298P H-bridge Arduino Motor Driver Shield with Buzzer
[ARD-02-003]
Product Variations:
-
L298P Dual Channel Arduino Motor Driver Shield
ARD-02-002 -
L298P H-bridge Arduino Motor Driver Shield with Bu
ARD-02-003 -
L293D Motor Driver Shield for Arduino
ARD-02-044 -
7A 160W Dual Channel DC Motor Drive Module (Replac
MTR-08-023 -
L298N Dual-Channel Bipolar DC/Stepper Motor Driver
MTR-09-001 -
L298N Dual-Channel DC/Stepper Motor Driver
MTR-09-003
Volume discounts:
- +25 4 % $8.58
- +50 6 % $8.39
- +100 8 % $8.20
- +300 10 % $8.02
- +500 13 % $7.83
Shop with confidence
Learn More
Availability:
SKU
ARD-02-003
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$8.95
Related Tutorials
Interfacing L298P H-bridge Motor Driver Shield with Arduino
Features
Logic part input voltage VD: 5V
Drive part input voltage VS: VIN input 6.5~12V, PWRIN input 4.8~35V
Logic part working current Iss: <36mA
Drive part of the operating current Io: <2A
Maximum power dissipation: 25W (T=75°C)
Control signal input level: high level 2.3V
Hardware interface: 5.0mm pitch terminal
With fixed buckle, and can access control signals through the array
Drive form: dual high power H-bridge drive
Pin occupation: D4~D7 direct drive motor
Support PWM / PLL mode motor speed control
Size: 68mm x 53mm
Drive part input voltage VS: VIN input 6.5~12V, PWRIN input 4.8~35V
Logic part working current Iss: <36mA
Drive part of the operating current Io: <2A
Maximum power dissipation: 25W (T=75°C)
Control signal input level: high level 2.3V
Hardware interface: 5.0mm pitch terminal
With fixed buckle, and can access control signals through the array
Drive form: dual high power H-bridge drive
Pin occupation: D4~D7 direct drive motor
Support PWM / PLL mode motor speed control
Size: 68mm x 53mm
Spcifcations:
1. board with L298D motor driver chip, the direct use of digital IO port motherboard (D10 .D11. D12. D13), without cumbersome wiring.
2. Onboard buzzer (D4), you can set the backup alarm tone.
3. convenient motor interface, can motor output two routes.
4. The two-way Bluetooth interface, can be directly inserted without wiring.
5 out of the D 2, D 3, D 5, D 6, D 7, D 9, D is not occupied by seven digital interface.
6 out of the A 0 - A 5 six analog interface.
7. both forward and backward turn indicator.
