AC 220V PIR Detector- Infrared Motion Sensor Switch

AC 220V PIR Sensor Switch Review

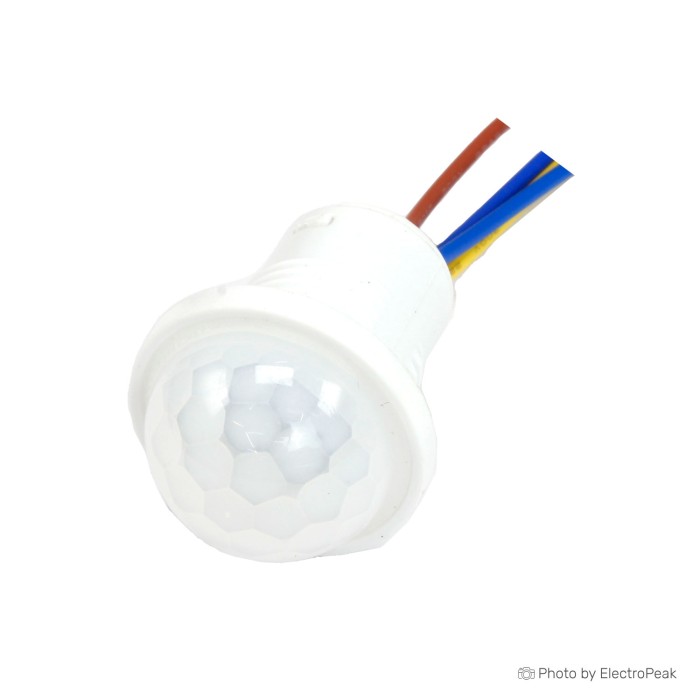

This white PIR switch provides automatic lighting control triggered by human-body infrared detection. It operates across an AC100-240V supply at 50/60Hz, with a 4-6m sensing distance, 110° angle coverage, selectable photosensing thresholds, and three fixed time-delay choices. It suits basic indoor lighting automation projects where you can verify the physical mounting fit, actual terminal layout, and lamp-load ratings before finalizing installation. For alternative form factors or lower-voltage detection needs, see our wider range of motion sensors.

Specifications of AC 220V PIR Detector - Infrared Motion Sensor Switch

• Type: PIR Switch
• Color: White
• Working Voltage/Frequency: AC100-240V, 50/60Hz
• Output Power: ≥40W
• Photosensing Setting: ≤2Lux, ≤25Lux, 2000Lux
• Sensing Distance: 4-6m
• Time Delay: 3 seconds, 45 seconds, 4 minutes
• Angle Coverage: 110°
• Extreme Temperature Using: -10°C to +45°C
• Standby Power Consumption: <0.1W
• Dimensions: 45x40x25mm

AC 220V PIR Sensor Switch Specifications Explained

The sensor's electrical and optical ratings set clear expectations for its role in an automation circuit. Knowing how each specification applies can prevent integration issues in tight enclosures or specific lighting zones.

Related generic mini-PIR switches can have different timer increments or slightly varied housing dimensions. Check the selector markings and physical housing of the delivered unit before cutting mounting panels or designing around an exact timeout interval.

AC 220V PIR Sensor Switch Wiring and LED Compatibility

The switch is intended for use with LED, fluorescent, and energy-saving bulbs. However, the listed "Output Power: ≥40W" figure is not a verified maximum load rating or a defined lamp-derating schedule. Allowable continuous current, maximum wattage by lamp chemistry, and minimum operating load requirements are not documented.

Electronic ballasts and low-wattage LED drivers can present high inrush currents and distinct leakage-current characteristics. In some electronic switching circuits, unbuffered low-wattage LED lamps can exhibit faint ghosting, pulsing, or off-state flicker. For a custom fixture or benchtop test setup, a separately rated mains power connection component or suitable mains power cord connection component can provide safe, strain-relieved mains entry into your insulated test enclosure.

Motors, exhaust fans, pumps, contactors, and inductive transformers are not documented load types for this switch. The exact internal switching technology—whether relay-isolated or solid-state—is unconfirmed. That makes it unsuitable for inductive or high-inrush appliances without a properly rated intermediate contactor.

AC 220V PIR Sensor Switch Limitations and Installation Checks

Safe deployment of this switch depends on recognizing what is not documented. The unit does not include an official manufacturer datasheet, certified wiring schematic, terminal assignment legend, or ingress protection (IP) rating. It has no verified approval for exterior use, humid bathrooms, or hot enclosed luminaires.

Before installing this 220V PIR sensor switch, review these critical checks:

• Mains Isolation: Always de-energize the supply circuit at the distribution board and verify zero voltage with a calibrated tester before touching any conductors.
• Physical Cutouts: Measure the actual lens collar, thread diameter, and enclosure depth on the physical unit before drilling panels; do not calculate panel cutouts from the 45x40x25mm outer housing dimensions alone.
• Terminal Verification: Do not rely on generic color codes or assumed line-neutral-load layouts. Verify the markings molded or stamped directly onto the delivered housing.
• Environmental Protection: Keep the device inside a dry, non-condensing, fire-retardant indoor enclosure. With no stated IP rating, exposed outdoor mounting will lead to premature failure or electrical hazard.
• Load Constraints: Avoid running loads near or above unverified limits, and do not connect motors or heavy reactive loads.

For a fully documented industrial housing or outdoor ingress protection, browse our broader selection of motion sensors for alternative options.

AC 220V PIR Sensor Switch Alternatives for DC Lighting and Smart-Home Detection

Different lighting setups and microcontrollers require distinct sensing technologies. For low-voltage direct-current circuits, logic-pin inputs, or stationary-occupant detection, consider these alternative approaches.

For low-voltage direct-current setups such as battery-backed systems or 12V/24V strips, a 12V/24V DC PIR lighting controller is a direct-fit variant. It switches DC loads up to 6A, has an 8m induction range, and provides an adjustable 1–10 minute delay. It cannot be connected directly to AC mains power.

For microcontroller interfacing or custom automation logic, a dedicated Arduino PIR motion sensor module such as the HC-SR501 operates on 5–20V DC and delivers a safe 3.3V TTL digital signal. It cannot switch heavy electrical loads on its own, so you will need an external relay or MOSFET driver. For wiring schematics and code examples using this module, consult our technical guide on PIR motion sensing with Arduino.

Passive infrared detectors only register heat sources moving across their optical segments. If your automation must maintain lighting while someone sits motionless at a desk or reads, a radar presence sensor for still-person detection such as the HLK-LD2410B provides a superior adjacent approach. Operating at 24GHz millimeter-wave frequencies, it detects micro-movements such as breathing up to 5–6m and outputs data via GPIO or UART, though it does not switch electrical loads directly.

AC 220V PIR Sensor Switch FAQ and Buying Checklist

Is this exactly a 220V PIR sensor switch?

The unit supports an operating voltage range of AC100-240V at 50/60Hz. Although commonly described as an AC 220V device, its internal power supply operates across standard 110V, 120V, 220V, 230V, and 240V mains systems.

What is the maximum LED wattage for this AC 220V PIR sensor switch?

The specification states Output Power: ≥40W, but an explicit maximum wattage rating for LED drivers is not supplied. Because capacitive driver inrush can stress electronic switches, verify the rating stamped on the delivered unit and avoid heavily loaded LED fixtures.

Will this motion sensor switch work with one small LED bulb?

The listing states compatibility with LED bulbs, but no minimum load threshold is published. Very low wattage lamps paired with electronic switches can occasionally pulse or glow when switched off, depending on the specific driver circuit inside the lamp.

Does this PIR switch need a neutral wire?

The specific terminal configuration and neutral requirements are not supplied. Inspect the terminal markings directly on the delivered unit before wiring it into a wall cavity or lighting box.

Is the timer really 3 seconds, 45 seconds, and 4 minutes?

The listed specification provides discrete delay options of 3 seconds, 45 seconds, and 4 minutes. Because similar generic sensor housings occasionally carry alternative markings, confirm the selector labels on your delivered part before finalizing your installation layout.

Can this infrared motion detector be installed outdoors or in a bathroom?

No ingress protection (IP) rating or humidity tolerance is supplied for this unit. Keep it within dry, protected indoor fixtures or non-condensing interior enclosures.

What size mounting hole does this PIR sensor need?

Mounting hole diameters and bezel thread dimensions are not provided in the specifications. Measure the front lens collar and mounting barrel on the delivered unit before drilling into any luminaire or panel.

Does this PIR motion sensor detect someone sitting still?

No, this PIR switch detects moving thermal infrared signatures from the human body. Once motion ceases, the switch disconnects the load after the selected delay period.

Can I use this 220V PIR sensor switch with a fan, pump, motor, or transformer?

Motors, pumps, and inductive transformers are not documented load types for this switch. Connecting reactive or high-inrush equipment risks damaging the switching stage unless an appropriately rated external isolation contactor is used.

Initial Confirmation and Setup Sequence

1. Inspect Markings: Examine the delivered housing for stamped wiring diagrams, terminal designations, and selector switch labels.
2. Isolate the Circuit: Turn off the circuit breaker feeding the installation point and confirm the line is dead using a reliable voltage detector.
3. Verify Fit: Measure the physical housing and collar dimensions against your target enclosure before cutting panel openings.
4. Bench Test on a Known Load: Connect the switch to a conservatively rated test lamp strictly following the terminal markings on the case. No software, app configuration, or firmware pairing is required.
5. Verify Settings: Test each photosensing setting and time-delay position using controlled movement to verify switching behavior before final installation.

Purchase Decision Summary

• Ideal for: Competent installers adding motion-triggered switching to protected indoor fixtures on AC100-240V lines where directional 110° coverage fits the layout and terminal markings can be confirmed before mounting.
• Maybe for: Indoor corridor or utility lighting where low-power standard lamps are used and the installer can bench-test the delivered unit first.
• Consider another option if: You require guaranteed compatibility with ultra-low-wattage LEDs, full-room 360° coverage, true stationary-presence detection, outdoor weatherproofing, or control of inductive loads like fans and pumps.

Pre-Purchase Verification Checklist

• Supply is standard mains between AC100-240V at 50/60Hz.
• The detection zone matches a directional 110° path up to 4-6m.
• The installation site is completely dry, sheltered, and indoors.
• Panel openings will be cut only after measuring the delivered unit's physical barrel.
• The intended lamp load does not involve unrated inductive motors or reactive ballasts.
• Terminal connections will be verified against the physical unit's label before energizing.
