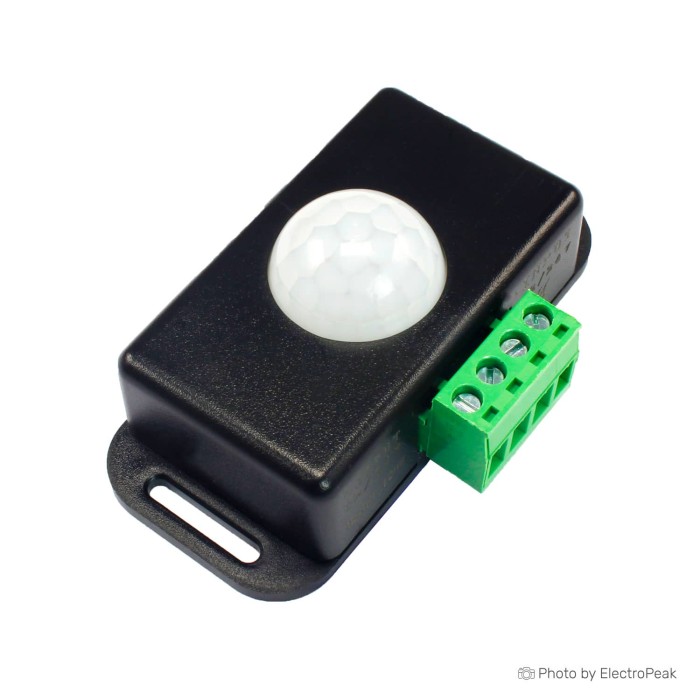

PIR 5050 LED Human Sensor Switch Light Bar - 6A, 12/24V
$2.1700
In stock
SKU
SEN-24-024
Volume discounts:
- +50 3 % $2.1000
- +100 5 % $2.0700
- +300 6 % $2.0300
- +500 8 % $2.0000
- +1000 9 % $1.9700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Hi-Link LD2415 Vehicle Speed Measurement Radar Module Previous
12V 24V PIR Sensor LED Motion Sensor Switch Motion Timer Function Sign Control PIR Controller LED Strips LightingGreat for small 12 volt DC solar panel LED Lighting systems to conserve battery power; also well suited for occupancy LED lighting control and security LED Lighting systems. See the additional information and specification sheet in our listing pictures for more details.
Specifications of LED Human Sensor Switch PIR 5050:
- Power supply voltage: 12-24V
- Output voltage: 12-24V
- Max load current: 6A
- Induction range: 8m
- Delay time: 1-10min (adjustable)
- Working temperature: -20-60 degrees Celsius
Direction for use:
The human body induction switch is a kind of infrared detection controller, adopt infrared detection way to control load switch. Users can according to actual needs, installed the human body sensors in the appropriate environment. Connect the load wire at first, following by the power wire; Please ensure short circuit cannot occur between connecting wire before you turn on the power; When detected somebody, the load light will bright, when people leave time up to the setting of the delay time, the load lights will automatically turn off. Controller signal output line and input line should be connected correctly
| Operating Voltage (V) | 12-24V DC |
|---|---|
| Operating Current (mA) | 6A |
| Operating Temp (°C) | -20 to 60 |
| Measurement Range | 8m |
| Sensor Type | PIR |
| Measurement Principle | Infrared |
