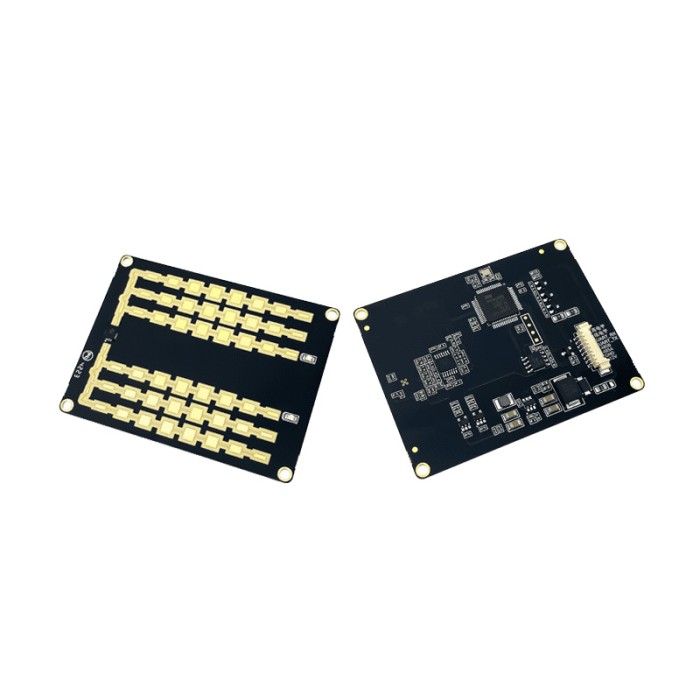

Hi-Link LD2415 Vehicle Speed Measurement Radar Module
The Hi-Link LD2415 Vehicle Speed Measurement Radar Module is a highly accurate millimeter wave radar that integrates microstrip antennas, RF circuits, and signal processing circuits. It is designed for long-distance speed measurement, capable of detecting vehicles at distances up to 180 meters or more. With a high frequency stability and an accuracy of ±1KM/h, this radar module is ideal for use in speed warning systems and road safety monitoring on various types of roads, including highways and urban roads.
Specifications of Hi-Link LD2415 Vehicle Speed Measurement Radar Module
-
Transmission Frequency: 24.075 to 24.175 GHz (customizable)
-
Output Power (EIRP): 18 to 20 dBm
-
Working Voltage: 9V to 24V
-
Working Current: 50mA @ 12V
-
Operation Temperature: -20°C to +85°C
-
Storage Temperature: -40°C to +125°C
-
Speed Measurement Range: 1 KM/H to 240 KM/H
-
Speed Measurement Accuracy: ±1 KM/H
-
Antenna Gain: Transmitter: 16 dBi, Receiver: 18.4 dBi
-
Antenna Angle: Transmitter: ±20° horizontal, ±8° vertical; Receiver: ±8° horizontal, ±20° vertical
-
Detection Distance: ≥180 meters
-
Dimensions: 69 x 53 x 5 mm
