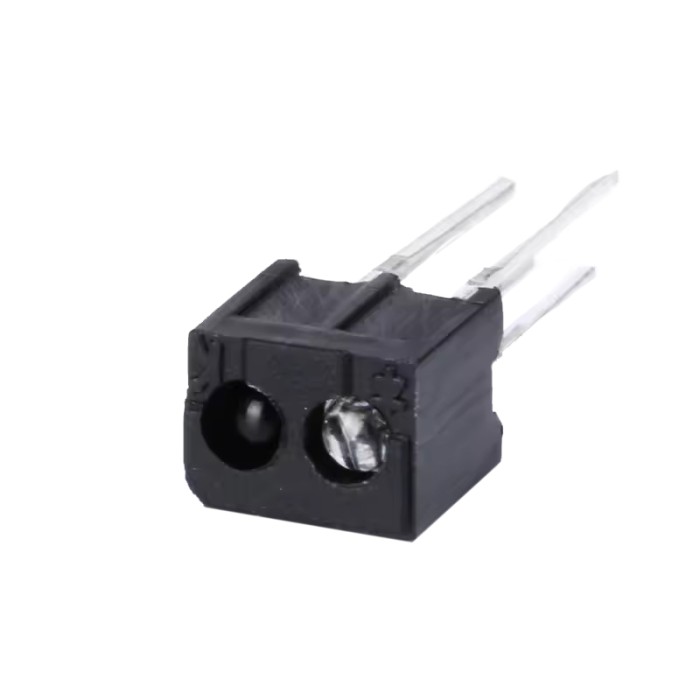

ITR20001/T Reflective Infrared Sensor Photoelectric Switch
$0.1300
In stock
SKU
SEN-27-005
ITR20001/T Reflective Infrared Sensor Photoelectric Switch is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare TOF (Time-Of-Flight) Laser Ranging Sensor Module Type C Previous
The ITR20001/T is a reflective infrared sensor featuring a built-in phototransistor and emitter. Designed for applications requiring precise object detection, it operates by reflecting infrared light from nearby objects to the phototransistor. This sensor offers high sensitivity and low dark current, making it suitable for applications like line following robots, optical switches, and proximity sensing.
Specifications of ITR20001/T Reflective Infrared Sensor
-
Sensor Output: Phototransistor
-
Collector-Emitter Voltage (VCEO) Max: 30 V
-
Emitter-Collector Voltage (VECO) Max: 5 V
-
Forward Current (If) Max: 50 mA
-
Reverse Voltage (Vr): 5 V
-
Power Dissipation (Pd) Max: 75 mW
-
Peak Wavelength: 940 nm
-
Dark Current Max: 100 nA
-
Rise Time Max: 25 µs
-
Fall Time Max: 25 µs
-
Mounting Style: Through Hole (THD)
Datasheet of ITR20001/T Reflective Infrared Sensor
| Operating Voltage (V) | 5V |
|---|---|
| Mounting Type | THT (Through Hole) |
| Output Type | Phototransistor |
| Response Time | 25 µs |
| Sensing Method | Infrared (IR) |
| Max Output (A) | 0.05 |
| Channels | 1-channel |
| Sensor Model | ITR20001/T |
