WS2812 8-Bit RGB LED Straight Module
$0.3400
In stock
SKU
ELC-02-097
Volume discounts:
- +100 3 % $0.3300
- +500 6 % $0.3200
- +1000 9 % $0.3100
- +10000 12 % $0.3000
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
WS2812 16-Bit RGB LED Ring Module Previous

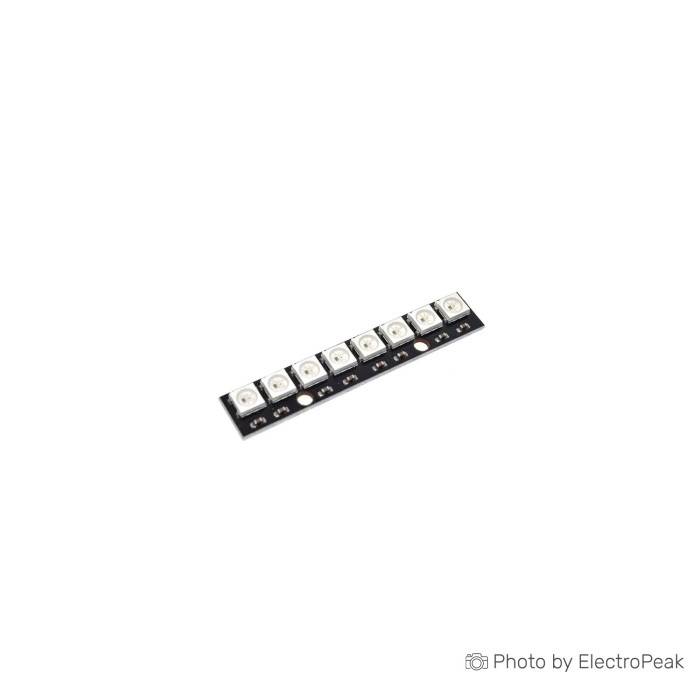

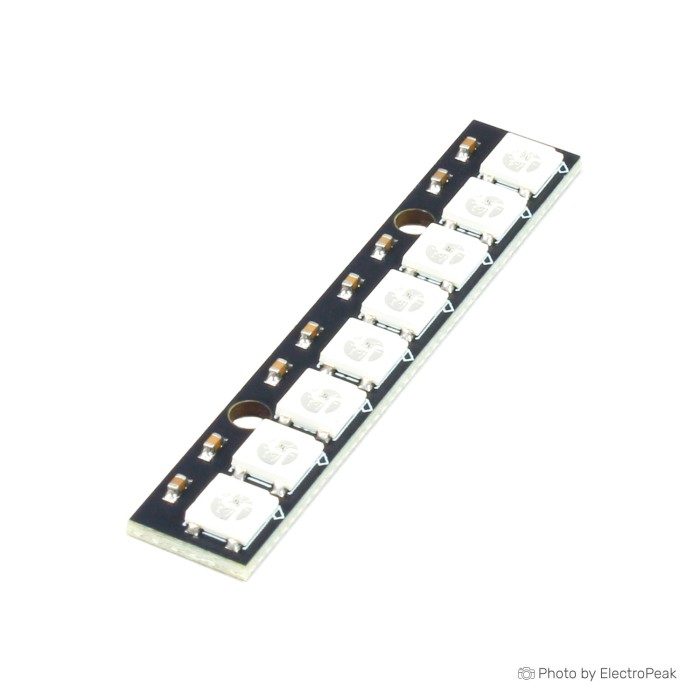

The WS2812 8-Bit RGB LED Straight Module is a compact RGB LED module with individually addressable LEDs. It uses a single-wire data protocol and supports independent control of each LED for custom colors and animations. The module uses WS2812 RGB LEDs and a 5050 light source model. It is designed for applications that need programmable lighting effects in a straight LED layout. The module operates within a 4 to 7V DC working voltage range.
Features of WS2812 8-Bit RGB LED Straight Module - 5V, 8 LEDs
- Individually addressable LEDs
- Single-wire data protocol
- 8 LEDs in a straight line
- WS2812 RGB LED type
- 5050 light source model
Specifications of WS2812 8-Bit RGB LED Straight Module - 5V, 8 LEDs
- Voltage: 5V DC
- Current: 18mA
- LED Type: RGB LEDs with WS2812 protocol
- Data Rate: 800Kbps
- Number of LEDs: 8 LEDs arranged in a straight line
- Control: Individually addressable LEDs, allowing unique colors and animations for each LED
- Communication: Uses a single-wire data protocol (WS2812) for data transmission
- Light Source Model: 5050
- Working Voltage: 4 to 7V DC
- Dimensions: 5.4x1mm
How to Use WS2812 8-Bit RGB LED Straight Module - 5V, 8 LEDs
- Connect the module to a compatible power source within the working voltage range.
- Use a single I/O pin to send WS2812 data signals to the module.
- Program the LEDs individually to create the desired colors and animations.
More Info
- The LED pin count on the product may vary depending on import time.
- Compatible libraries or software can be used for control.
- Ensure the power supply can support the total current demand at maximum brightness.
| Item Type | LED Module |
|---|---|
| LED Chip | WS2812B (5050) |
| LED Count | 8 |
| LED Color | RGB |
| Color Order | GRB |
| Protocols | Single-wire,WS2812 |
| Operating Voltage (V) | 4 - 7 |
| Operating Current (mA) | 18 |
| Dimensions (mm) | 5.4 x 1 |
