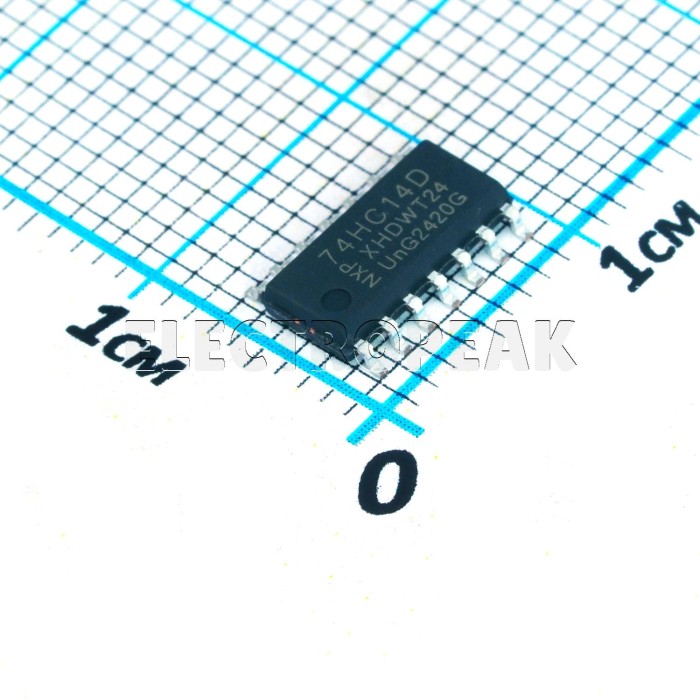

74HC14D, Inverters, SO-14

[S1-0081]
Volume discounts:
  • +500 4 % $0.0414
  • +1000 6 % $0.0406
  • +5000 7 % $0.0398
  • +10000 9 % $0.0390
  • +20000 11 % $0.0382
Shop with confidence Learn More
Availability: 42850 items
SKU
S1-0081
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$0.0430
74HC14D, Inverters, SO-14 is available to buy in increments of 50

The 74HC14D IC is a hex inverter with Schmitt-trigger inputs, available in an SO-14 package. This high-speed CMOS device is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The Schmitt-trigger inputs provide hysteresis, enhancing noise immunity.

Specifications of 74HC14D Hex Inverting Schmitt Trigger

  • Supply Voltage: 2.0V to 6.0V
  • Number of Inverters: 6
  • Propagation Delay Time: 11 ns (typical) at VCC = 5V
  • Low Power Consumption: ICC = 1.0 µA (maximum) at TA = 25°C
  • High Noise Immunity: VH = 1.1V (typical) at VCC = 4.5V
  • Package: SO-14

More Information
Package SO-14
Packaging Tape & Reel
Function Inverter Schmitt Trigger
Mounting Type SMD/SMT
Components - Type Inverters
