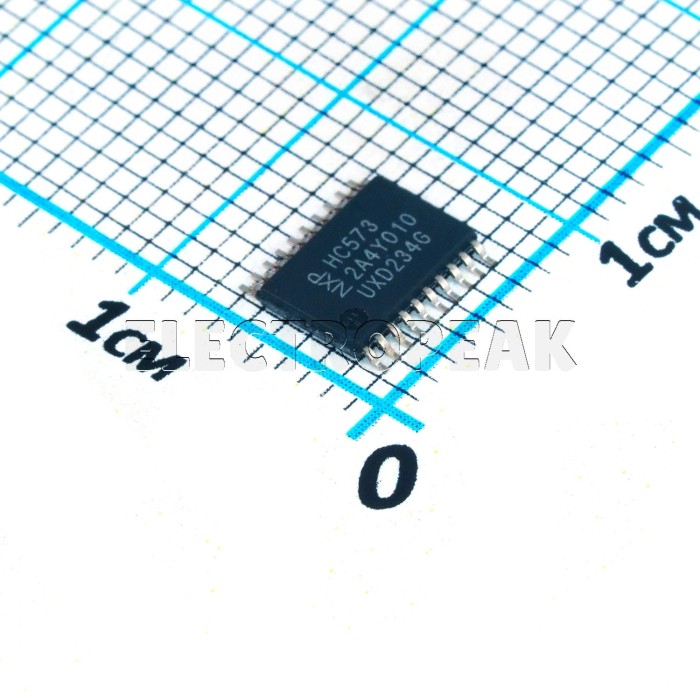

74HC573PW, Latch IC, TSSOP-20
$0.1700
In stock
SKU
S1-0082
Volume discounts:
- +100 6 % $0.1600
- +5000 12 % $0.1500
74HC573PW, Latch IC, TSSOP-20 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
74HC00D, NAND Logic Gate IC, SO-14 Previous
The 74HC573PW is an 8-bit D-type latch IC with 3-state outputs in a TSSOP-20 package. It is used for storing and transferring data in digital systems. The device is built using high-speed CMOS technology. This IC is suitable for applications that require controlled data retention and output isolation. The 74HC573PW latch IC combines compact packaging with standard digital logic functionality.
Features of 74HC573PW 8-Bit D-Type Latch IC
- 8-bit D-type latch
- 3-state outputs
- High-speed CMOS technology
- TSSOP-20 package
Specifications of 74HC573PW 8-Bit D-Type Latch IC
- Supply Voltage: 2V to 6V
- Number of Latches: 8
- Input Type: CMOS
- Propagation Delay Time: 16 ns at VCC = 5V
- Output Current: ±6 mA at VCC = 4.5V
- Operating Temperature Range: -40°C to 85°C
- Package: TSSOP-20
How to Use 74HC573PW 8-Bit D-Type Latch IC
- Connect the IC within the 2V to 6V supply voltage range.
- Use the 8-bit latch function for digital data storage and transfer.
- Install the device in a TSSOP-20 circuit design.
More Info
- Designed as a latch IC for digital systems.
- Output configuration includes 3-state outputs.
| Package | TSSOP-20 |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +125 C° |
| Polarity | Non-Inverting Type |
| Mounting Type | SMD/SMT |
| Components - Type | Latches |
