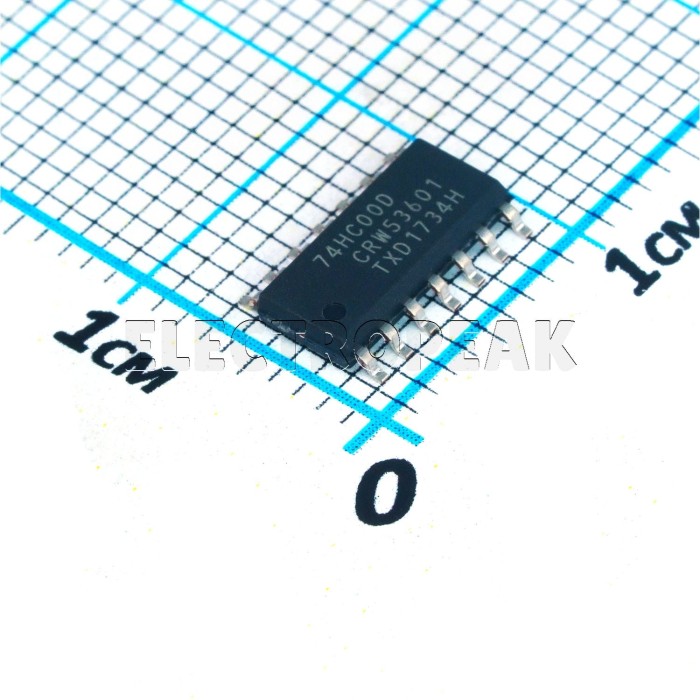

74HC00D, NAND Logic Gate IC, SO-14
$0.0780
In stock
SKU
S1-0083
Volume discounts:
- +100 4 % $0.0750
- +500 6 % $0.0730
- +1000 8 % $0.0720
- +5000 10 % $0.0700
- +10000 12 % $0.0690
74HC00D, NAND Logic Gate IC, SO-14 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
74HC32D, OR Logic Gate IC, SO-14 Previous
The 74HC00D NAND Logic Gate IC is a quad 2-input NAND gate in an SO-14 package. It is a high-speed CMOS device designed for logical signal conversion. The 74HC00D IC is suitable for applications that require four NAND gates in a compact package. Its specified electrical and timing characteristics are listed below.
Features of 74HC00D NAND Logic Gate IC
- Quad NAND gate design
- 2 inputs per gate
- High-speed CMOS construction
- SO-14 package
Specifications of 74HC00D NAND Logic Gate IC
- Supply Voltage: 2.0V to 6.0V
- Number of Gates: 4
- Number of Inputs: 2 inputs per gate
- Propagation Delay Time: 10 ns at VCC = 5V
- Output Current: ±6 mA at VCC = 4.5V
- Operating Temperature Range: -40°C to 85°C
- Package: SO-14
How to Use 74HC00D NAND Logic Gate IC
- Provide a supply voltage within the specified range.
- Connect the input signals to the gate inputs.
- Use the gate outputs as logical outputs.
More Info
- High-speed CMOS logic IC
- Quad 2-input NAND gate configuration
| Package | SO-14 |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +125 C° |
| Function | NAND |
| Mounting Type | SMD/SMT |
| Components - Type | Logic Gates |
