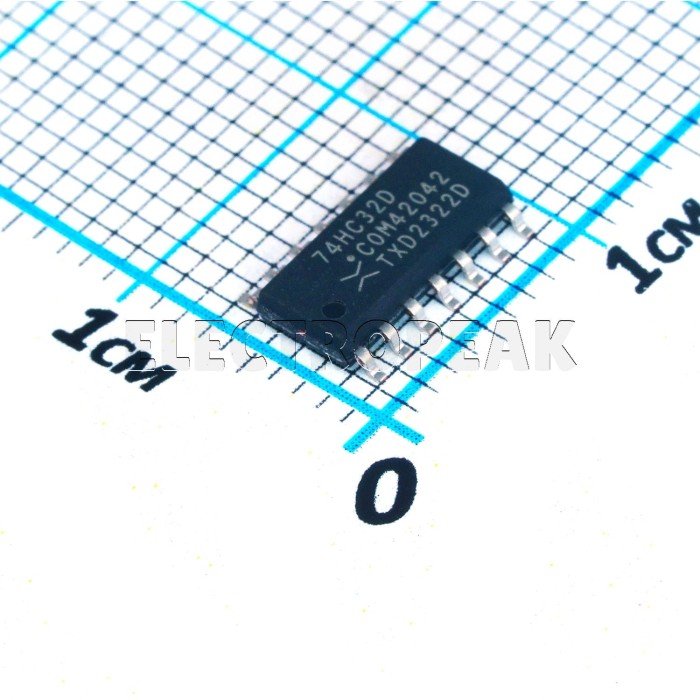

74HC32D, OR Logic Gate IC, SO-14
$0.1100
In stock
SKU
S1-0084
Volume discounts:
- +500 9 % $0.1000
74HC32D, OR Logic Gate IC, SO-14 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
74HC86D, XOR Logic Gate IC, SO-14 Previous
The 74HC32D is a quad 2-input OR gate IC in an SO-14 package. It is a high-speed CMOS device designed to convert input signals into logical outputs. This OR logic gate IC provides four gates with two inputs per gate. It operates across a 2.0V to 6.0V supply range. The package format is SO-14.
Features of 74HC32D Quad 2-Input OR Gate IC
- Quad OR gate design
- 2 inputs per gate
- High-speed CMOS construction
- SO-14 package
Specifications of 74HC32D Quad 2-Input OR Gate IC
- Supply Voltage: 2.0V to 6.0V
- Number of Gates: 4
- Number of Inputs: 2 inputs per gate
- Propagation Delay Time: 10 ns at VCC = 5V
- Output Current: ±6 mA at VCC = 4.5V
- Operating Temperature Range: -40°C to 85°C
- Package: SO-14
How to Use 74HC32D Quad 2-Input OR Gate IC
- Connect the IC within the 2.0V to 6.0V supply range.
- Apply input signals to each 2-input OR gate.
- Use the logical outputs from the SO-14 package pins.
More Info
- 74HC32D is a logic gate IC.
- Suitable for high-speed CMOS logic applications.
| Package | SO-14 |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +125 C° |
| Function | OR |
| Mounting Type | SMD/SMT |
| Components - Type | Logic Gates |
