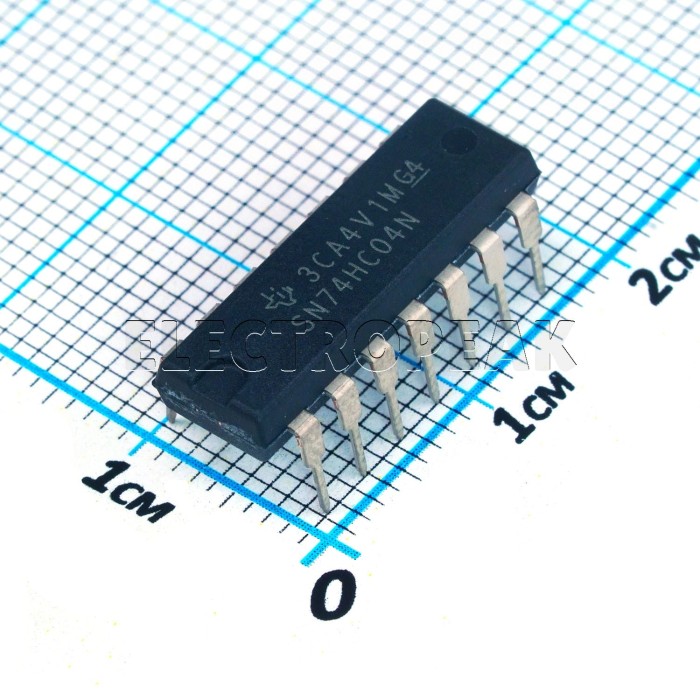

SN74HC04N, Hex Inverter IC, DIP-14
$0.4000
In stock
SKU
S1-0096
Volume discounts:
- +100 5 % $0.3800
- +1000 8 % $0.3700
- +5000 10 % $0.3600
- +10000 13 % $0.3500
SN74HC04N, Hex Inverter IC, DIP-14 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CD4069UBE, Inverter IC, DIP-14 Previous
The SN74HC04N Hex Inverter IC is a CMOS inverter in a DIP-14 package. It contains six NOT gates, each with one input and one output, for inverting digital signals. This IC is designed for digital logic applications and provides a standard inverter configuration. The SN74HC04N is supplied in a compact through-hole package for circuit integration.
Features of SN74HC04N Hex Inverter IC
- CMOS inverter
- Six NOT gates
- Single input and single output per gate
- DIP-14 package
Specifications of SN74HC04N Hex Inverter IC
- Supply Voltage: 2.0V to 6.0V
- Number of Gates: 6
- Low Logic Voltage: 0.5V to 1.8V
- High Logic Voltage: 1.5V to 4.2V
- Output Current: 5.2 mA at high and low logic levels
- Operating Temperature Range: -40°C to 85°C
- Package: DIP-14
How to Use SN74HC04N Hex Inverter IC
- Place the IC in a compatible circuit layout.
- Connect the supply voltage within the specified range.
- Use each gate to invert the selected digital input signal.
More Info
- Suitable for digital signal inversion
- Standard hex inverter configuration
| Package | DIP-14 |
|---|---|
| Packaging | Tube |
| Function | Inverters Hex |
| Mounting Type | Through Hole |
| Components - Type | Inverters |
