CD40106BM, Hex Inverter IC, DIP-14
$0.1500
In stock
SKU
S1-0097
Volume discounts:
- +100 7 % $0.1400
- +10000 13 % $0.1300
CD40106BM, Hex Inverter IC, DIP-14 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

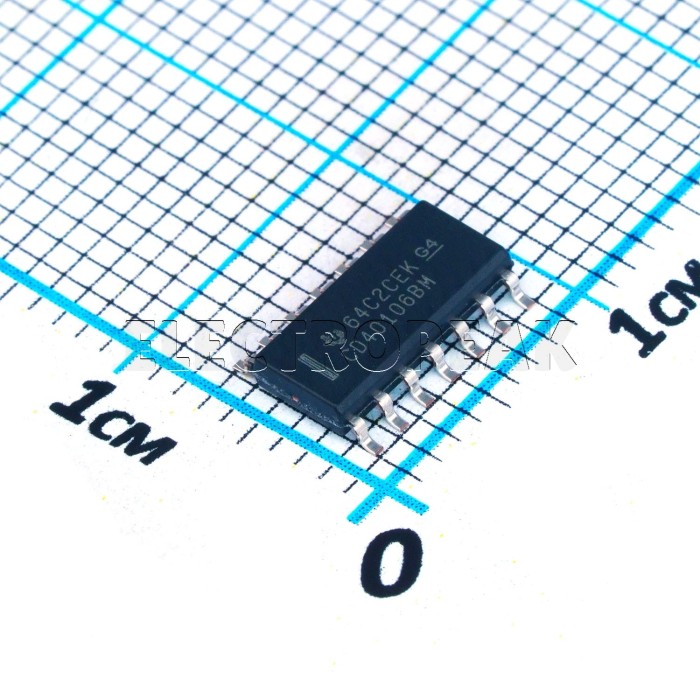

CD40106BM Hex Inverter IC is a CMOS inverter with Schmitt Trigger in an SOIC-14 package. It provides six input and six output inverter channels for digital signal inversion. The device is designed for signal amplification and noise reduction in digital systems. This CD40106BM IC suits electronics and robotics projects that need CMOS logic inversion with Schmitt Trigger behavior.
Features of CD40106BM Hex Inverter IC - SOIC-14
- Six inverter channels
- CMOS construction
- Schmitt Trigger input
- Signal inversion
- Noise reduction support
- SOIC-14 package
Specifications of CD40106BM Hex Inverter IC - SOIC-14
- Supply Voltage: 3.0V to 18.0V
- Number of Gates: 6
- Low Logic Voltage: 0.9V to 4.0V
- High Logic Voltage: 3.6V to 10.8V
- Input Current: 1 µA at 18V
- Output Current: 3.4 mA at high and low logic levels
- Operating Temperature Range: -55°C to 125°C
- Package: SOIC-14
How to Use CD40106BM Hex Inverter IC - SOIC-14
- Connect the supply voltage within the specified range.
- Apply the digital input signal to the inverter channel.
- Use the corresponding output for the inverted signal.
More Info
- Hex inverter IC with six gates.
- Suitable for CMOS logic applications.
| Package | SOIC-14 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -55 C° |
| Operating Temperature Max | +125 C° |
| Function | Inverter Schmitt Trigger |
| Mounting Type | SMD/SMT |
| Components - Type | Inverters |
