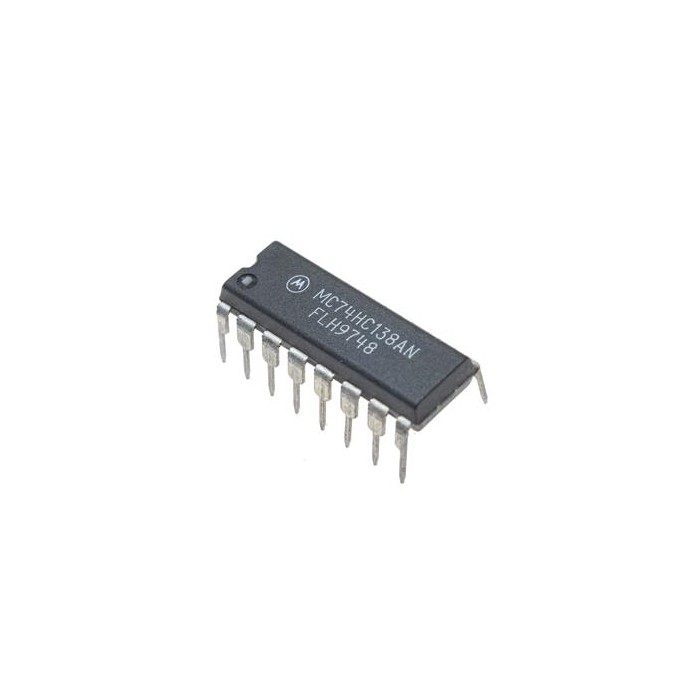

74HC138AN, Encoder/Decoder IC, DIP-16

$0.0000
Out of stock
SKU
S1-0080
Shop with confidence Learn More
74HC14D, Inverters, SO-14 Previous 74HC14D, Inverters, SO-14

The 74HC138AN IC is a 3-to-8 line decoder/demultiplexer with active-low outputs, available in a DIP-16 package. It decodes three binary address inputs into one of eight outputs. Additionally, it features three enable inputs, allowing for easy expansion.

Specifications of 74HC138AN 3-to-8 Line Decoder/Demultiplexer

  • Supply Voltage: 2V to 6V
  • Number of Address Inputs: 3
  • Number of Outputs: 8
  • Propagation Delay Time: 45 ns
  • Operating Temperature Range: -40°C to 85°C
  • Package: DIP-16
More Information
Package DIP-16
Packaging Tape & Reel
Operating Temperature Min -40 C°
Operating Temperature Max +125 C°
Function Decoders / Demultiplexers
Number of Bits 3 bit
Mounting Type SMD/SMT
Components - Type Encoders, Decoders, Multiplexers & Demultiplexers
