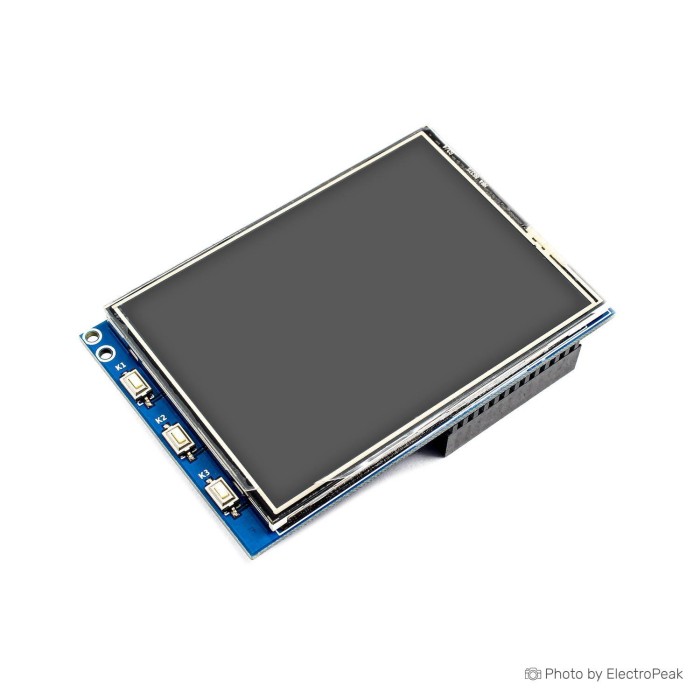

Waveshare 3.2 inch Raspberry Pi TFT LCD Type C SPI with Resistive Touch
$18.5000
In stock
SKU
LCD-01-110
Volume discounts:
- +25 3 % $18.0000
- +50 4 % $17.7500
- +100 5 % $17.5000
- +300 7 % $17.2500
- +500 8 % $17.0000
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare 1.5 inch RGB SPI OLED Display Module Previous
Waveshare 3.2 Inch Raspberry Pi TFT LCD is a 3.2 inch touch screen display designed for Raspberry Pi use. It features SPI interface support, resistive touch control, and a 320x240 hardware resolution. The display supports any revision of Raspberry Pi and is directly pluggable. It also supports 125MHz high-speed SPI signal transmission for a clear and stable display effect. Drivers are provided for Raspbian, Ubuntu, Kali, and Retropie systems. FBCP software driver support is included for software resolution configuration and dual-display setup.
The panel uses TFT LCD technology with a touch screen controller and LED backlight. Its size is designed to fit Raspberry Pi B+, 2B, 3B, and 3B+. The product is suitable for display and touch-based interaction in Raspberry Pi projects.
Features of Waveshare 3.2 Inch Raspberry Pi TFT LCD - SPI, Resistive Touch
- 320x240 hardware resolution
- Resistive touch control
- Directly pluggable Raspberry Pi support
- 125MHz high-speed SPI transmission
- FBCP software driver support
- Fits Raspberry Pi B+, 2B, 3B, and 3B+
- High quality immersion gold surface plating
Specifications of Waveshare 3.2 Inch Raspberry Pi TFT LCD - SPI, Resistive Touch
- LCD Type: TFT
- LCD Interface: SPI
- Touch Screen Type: Resistive
- Touch Screen Controller: XPT2046
- Colors: 65536
- Backlight: LED
- Resolution: 320x240 (Pixel)
- Aspect Ratio: 8:5
- Power Consumption: TBD
- Backlight Current: TBD
- Operating Temp. (℃): TBD
- 3.3V Power Input
- 5V Power Input
- NC
- GND Ground
- TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
- Key1
- RST Reset, low active
- LCD_RS Instruction/Data Register selection, low for instruction, high for data
- Key2
- Key3
- LCD_SI / TP_SI SPI data input of LCD / Touch Panel
- TP_SO SPI data output of Touch Panel
- LCD_SCK / TP_SCK SPI clock of LCD / Touch Panel
- LCD_CS LCD chip selection, low active
- TP_CS Touch Panel chip selection, low active
How to Use Waveshare 3.2 Inch Raspberry Pi TFT LCD - SPI, Resistive Touch
- Connect the display to the Raspberry Pi header.
- Install the provided driver for your system.
- Use the touch screen and display functions in your Raspberry Pi setup.
More Info
- Supports Raspbian, Ubuntu, Kali, and Retropie.
- Wiki: www.waveshare.com/wiki/3.2inch_RPi_LCD_(C)
| Model | 3.2inch RPi LCD (C) |
|---|---|
| Platform | Raspberry Pi 3, Raspberry Pi 4, Raspberry Pi 5 |
| Display Size | 3.2 inch |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 320x240 |
| Display Driver | XPT2046 |
| Display Interface | SPI |
| Panle Type | TFT |
| Display Color Type | Full Color |
| Touchscreen Type | Resistive |
| Backlight Type | LED |
| Operating Voltage (V) | 3.3V, 5V |
| Pins | 26 |
