Waveshare 3.5 inch Raspberry Pi TFT LCD Type C SPI with Resistive Touch
$15.5000
In stock
SKU
LCD-01-109
Volume discounts:
- +25 4 % $14.9500
- +50 5 % $14.6800
- +100 7 % $14.4000
- +300 9 % $14.1300
- +500 11 % $13.8500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare 3.2 inch Raspberry Pi TFT LCD Type C SPI with Resistive Touch Previous

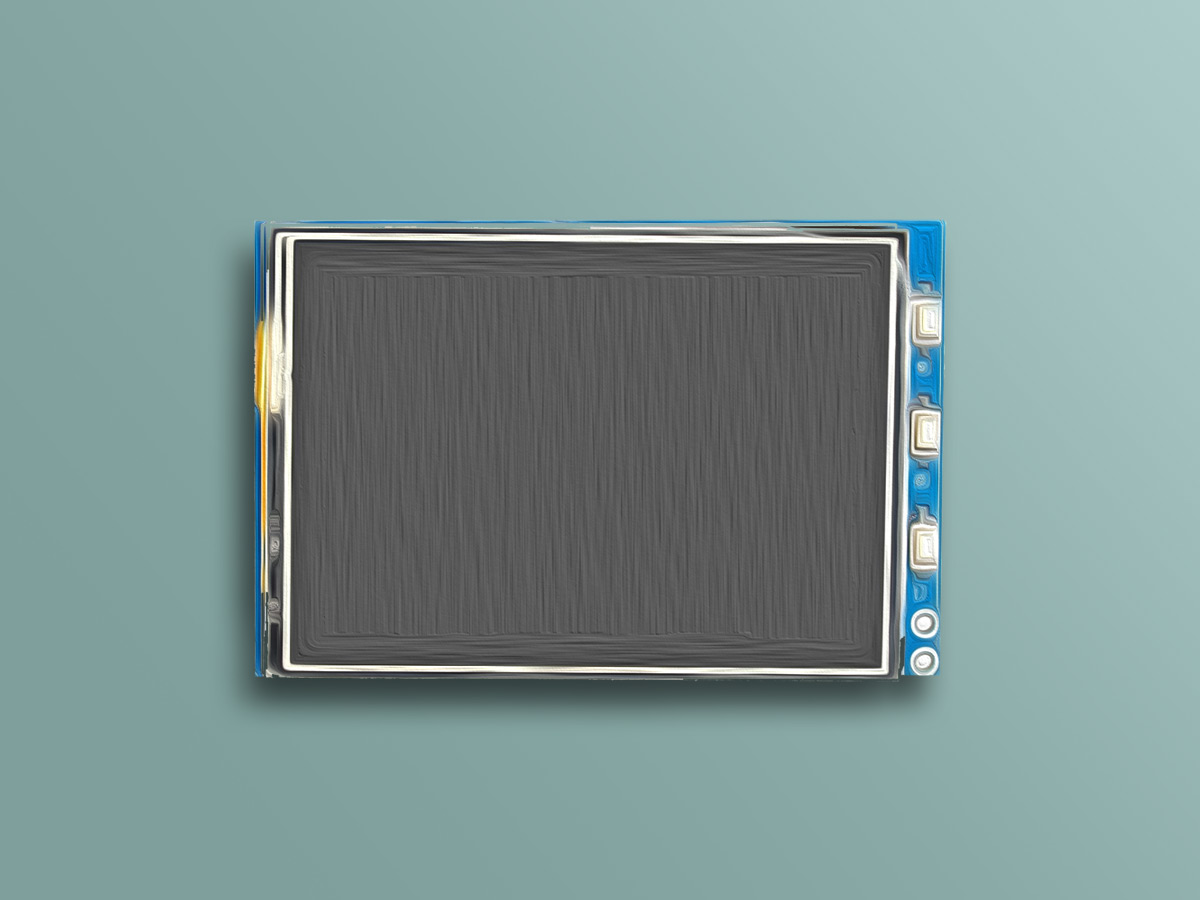

The 3.5 inch TFT resistive touchscreen display from Waveshare is a high-quality module designed specifically for Raspberry Pi boards. Featuring a resolution of 480x320 pixels and supporting 65K colors, this screen provides clear visuals for graphical applications. With SPI interface and XPT2046 touch controller, it enables precise user interaction. The module supports popular Raspberry Pi OSes such as Raspbian, Ubuntu, Kali, and RetroPie, making it ideal for multimedia, DIY, and retro gaming projects. It fits directly onto Raspberry Pi boards and offers software support for touch control, video playback, and more.
Specifications of 3.5 inch SPI TFT Resistive Touchscreen Display (Type C) for Raspberry Pi by Waveshare
- LCD Type: Full-color TFT
- Resolution: 480 × 320 pixels
- Display Colors: 65K colors
- Touch Type: Resistive touch
- Touch Controller: XPT2046
- Interface: 4-wire SPI
- Backlight: LED
- Aspect Ratio: 8:5
- Operating Voltage: 3.3 to 5V
- Compatibility: Raspberry Pi B+/2B/3B/3B+ and newer
- Software Support: Raspbian, Ubuntu, Kali, RetroPie
- FBCP Support: Allows dual-screen setup and custom resolution
- Features: Video playback, RetroPie gaming, touch camera control, on-screen keyboard
- Physical Dimensions: Sized to fit Raspberry Pi (3.5inch-RPi-LCD-C)
| Pin No | Pin Name | Description |
|---|---|---|
| 1, 17 | 3.3V | +Vcc (3.3v) |
| 2, 4 | 5V | +Vcc (5v) |
| 6, 9, 14, 20, 25 | GND | GND |
| 11 | TP_IRQ | Touch interrupt, Active LOW |
| 18 | LCD_RS | Data/Command |
| 19 | LCD_SI / TP_SI | MOSI pin of SPI for LCD and Touch |
| 21 | TP_SO | MISO pin of SPI for LCD and Touch |
| 22 | RST | RST pin |
| 23 | LCD_SCK / TP_SCK | Clock pin of SPI for LCD and Touch |
| 24 | LCD_CS | Chip Select Pin of SPI (Active LOW) for LCD |
| 26 | TP_CS | Chip Select Pin of SPI (Active LOW) for Touch |
| Model | 3.5inch RPi LCD (C) |
|---|---|
| Platform | Raspberry Pi 3, Raspberry Pi 4, Raspberry Pi 5 |
| Display Size | 3.5 inch |
| Display Size Range | 3.5 inch to 6.9 inch |
| Display Resolution | 480x320 |
| Display Driver | XPT2046 |
| Display Interface | SPI |
| Panle Type | TN |
| Display Color Type | Full Color |
| Touchscreen Type | Resistive |
| Backlight Type | White LED |
| Operating Voltage (V) | 5V |
| Pins | 40 |
