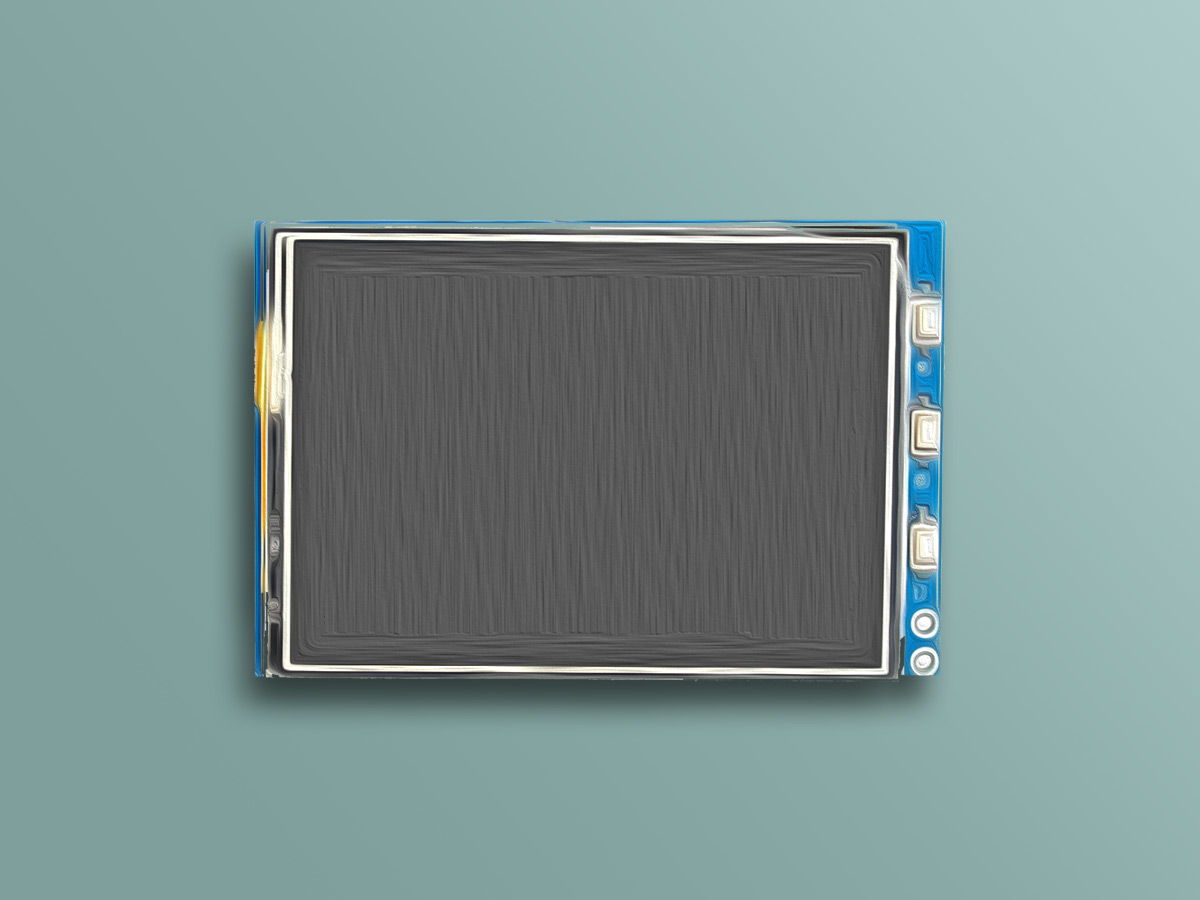

Waveshare 2.8 inch Raspberry Pi TFT LCD Type A with Resistive Touch
$16.5000
In stock
SKU
LCD-01-108
Volume discounts:
- +25 3 % $16.0000
- +50 5 % $15.7500
- +100 6 % $15.5000
- +300 8 % $15.2500
- +500 9 % $15.0000
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare 11.6 inch IPS HDMI Touch LCD Type H with Case Previous
Waveshare 2.8 inch Raspberry Pi TFT LCD Type A with Resistive Touch is a TFT LCD module for Raspberry Pi projects. It features 320x240 hardware resolution and a resistive touch screen. The display supports any revision of Raspberry Pi and is directly pluggable. Drivers are provided for use with Raspbian, Ubuntu, and Kali. It also supports the FBCP software driver for software resolution configuration and dual-display setup. The board includes 4 user keys and high quality immersion gold surface plating.
Features of Waveshare 2.8 Inch Raspberry Pi TFT LCD Type A With Resistive Touch
- 320x240 hardware resolution
- Resistive touch control
- Directly pluggable Raspberry Pi support
- Driver support provided
- FBCP software driver support
- 4 user keys
- Immersion gold surface plating
Specifications of Waveshare 2.8 Inch Raspberry Pi TFT LCD Type A With Resistive Touch
- LCD Type: TFT
- LCD Interface: SPI
- Touch Screen Type: Resistive
- Touch Screen Controller: XPT2046
- Colors: 65536
- Backlight LED
- Resolution: 320x240 (Pixel)
- Aspect Ratio: 4:3
- Power Consumption: TBD
- Backlight Current: TBD
- Operating Temp. (℃): TBD
- 1, 17: 3.3V Power positive (3.3V power input)
- 2, 4: 5V Power positive (5V power input)
- 3, 5, 7, 8, 10: NC
- 6, 9, 14, 20, 25: GND
- 11: TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
- 12: KEY1 Key
- 13: RST Reset
- 15: LCD_RS LCD instruction control, Instruction/Data Register selection
- 16: KEY2 Key
- 18: KEY3 Key
- 19: LCD_SI / TP_SI SPI data input of LCD/Touch Panel
- 21: TP_SO SPI data output of Touch Panel
- 22: KEY4 Key
- 23: LCD_SCK / TP_SCK SPI clock of LCD/Touch Panel
- 24: LCD_CS LCD chip selection, low active
- 26: TP_CS Touch Panel chip selection, low active
How to Use Waveshare 2.8 Inch Raspberry Pi TFT LCD Type A With Resistive Touch
- Connect the display to a supported Raspberry Pi board.
- Install the required driver if needed.
- Use the touch screen, user keys, and display interface in your project.
More Info
- Supports Raspbian, Ubuntu, and Kali.
- Compatible with Raspberry Pi B+/2B/3B/3B+/4B.
- Can be used for touch-based camera control and software keyboard interaction.
| Model | 2.8inch RPi LCD (A) |
|---|---|
| Platform | Raspberry Pi 3, Raspberry Pi 4 |
| Display Size | 2.8 inch |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 320x240 |
| Display Driver | XPT2046 |
| Display Interface | SPI |
| Panle Type | TFT |
| Display Color Type | Full Color |
| Touchscreen Type | Resistive |
| Backlight Type | LED |
| Operating Voltage (V) | 3.3V, 5V |
| Pins | 26 |
