ZS12010 Liquid Level Sensor - Float Switch
$3.7500
In stock
SKU
SEN-20-028
Volume discounts:
- +25 4 % $3.5900
- +100 6 % $3.5100
- +300 9 % $3.4300
- +500 11 % $3.3500
- +1000 13 % $3.2700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ZS7510 Liquid Level Sensor - Float Switch Previous

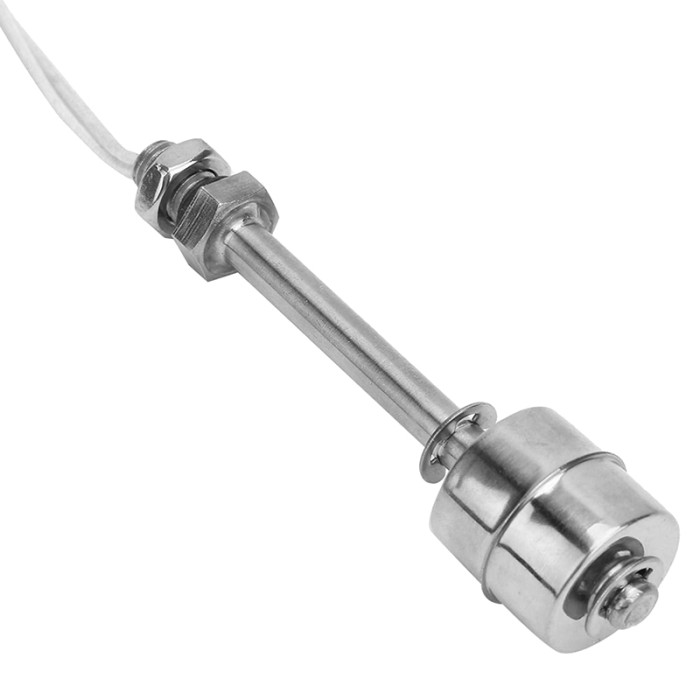

The ZS12010 Liquid Level Sensor - Float Switch is a liquid level monitoring component for tanks, containers, and other liquid handling applications. It is built with stainless steel SUS304 for a durable structure and corrosion resistance. This float switch supports high and low level detection in a range of liquids. The ZS12010 Liquid Level Sensor - Float Switch is specified with a maximum switching voltage of 100V DC and a maximum contact rating of 10W. It is also defined by its switching current, breakdown voltage, carry current, contact resistance, temperature range, thread size, total length, color, and overall dimensions.
Features of ZS12010 Liquid Level Sensor - Float Switch
- Liquid level monitoring
- High and low level detection
- SUS304 stainless steel body
- Corrosion-resistant construction
- Silver tone finish
Specifications of ZS12010 Liquid Level Sensor - Float Switch
- Product Name: Floating Switch
- Model No.: ZS12010
- Max Contact Rating: 10W
- Max Switching Voltage: 100V DC
- Max Switching Current: 0.5A
- Max Breakdown Voltage: 220V DC
- Max Carry Current: 1A
- Max Contact Resistance: 100mOhm
- Max Temperature: -30°C to +120°C
- Material: Stainless Steel, SUS304
- Thread Diameter: 10mm
- Thread Length: 15mm
- Switch Total Length: 120mm
- Color: Silver Tone
- Dimensions: 120mm x 10mm (Switch Length x Thread Diameter)
How to Use ZS12010 Liquid Level Sensor - Float Switch
- Install the float switch at the required liquid level point.
- Connect the switch within the specified electrical limits.
- Use the switch for liquid level detection and monitoring.
More Info
- Suitable for liquid level control tasks.
- Designed for use with tanks and containers.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 100V DC (Max Switching) |
| Operating Current (mA) | 0.5A (Max Switching) |
| Operating Temp (°C) | -30°C to +120°C |
| Dimensions (mm) | 120mm x 10mm (Switch Length x Thread Diameter) |
| Mounting Type | M10 Thread |
| Output Type | Digital |
| Environmental Parameter | Liquid Level |
| Probe Type | Immersion |
| Chipset | ZS12010 |
| Relay Output | No |
