ZS7510 Liquid Level Sensor - Float Switch
$3.2500
In stock
SKU
SEN-20-024
Volume discounts:
- +25 4 % $3.1200
- +100 6 % $3.0500
- +300 8 % $2.9900
- +500 10 % $2.9200
- +1000 12 % $2.8600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ZPC4 Liquid Level Sensor Right Angle (Type-D) - Float Switch Previous

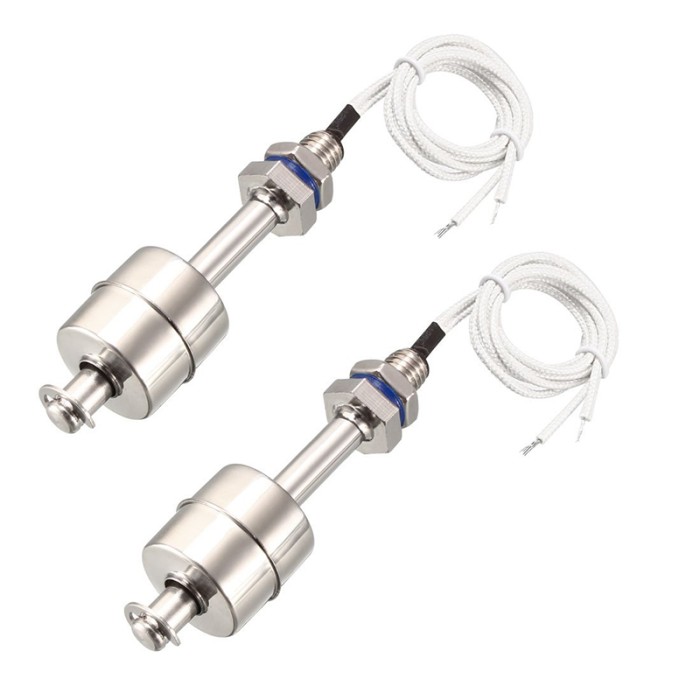

The ZS7510 Liquid Level Sensor is a float switch for liquid level monitoring and control in tanks, containers, and similar applications. It is built with SUS304 stainless steel for durability and corrosion resistance. The ZS7510 is designed for high and low liquid level detection. It supports a maximum switching voltage of 100V DC and a maximum contact rating of 10W. This float switch is suitable for applications that require accurate liquid level detection.
Features of ZS7510 Liquid Level Sensor - Float Switch
- High and low level detection
- SUS304 stainless steel body
- Corrosion-resistant construction
- Maximum switching voltage of 100V DC
- Maximum contact rating of 10W
Specifications of ZS7510 Liquid Level Sensor - Float Switch
- Product Name: Floating Switch
- Model No.: ZS7510
- Max Contact Rating: 10W
- Max Switching Voltage: 100V DC
- Max Switching Current: 0.5A
- Max Breakdown Voltage: 220V DC
- Max Carry Current: 1A
- Max Contact Resistance: 100mOhm
- Max Temperature: -30°C to +120°C
- Material: Stainless Steel, SUS304
- Thread Diameter: 10mm
- Thread Length: 15mm
- Switch Total Length: 75mm
- Color: Silver Tone
- Dimensions: 75mm x 10mm (Switch Length x Thread Diameter)
How to Use ZS7510 Liquid Level Sensor - Float Switch
- Install the float switch at the required liquid level point.
- Connect it within the specified electrical limits.
- Use it for liquid level detection and control.
More Info
- Designed for tanks and containers
- Suitable for liquid level monitoring applications
| Operating Voltage (V) | 100V DC |
|---|---|
| Operating Current (mA) | 0.5A (Switching) |
| Operating Temp (°C) | -30°C to +120°C |
| Dimensions (mm) | 75mm x 10mm (Switch Length x Thread Diameter) |
| Mounting Type | Panel Mount |
| Output Type | Digital |
| Environmental Parameter | Liquid Level |
| Probe Type | Immersion |
| Chipset | ZS7510 |
| Relay Output | No |
