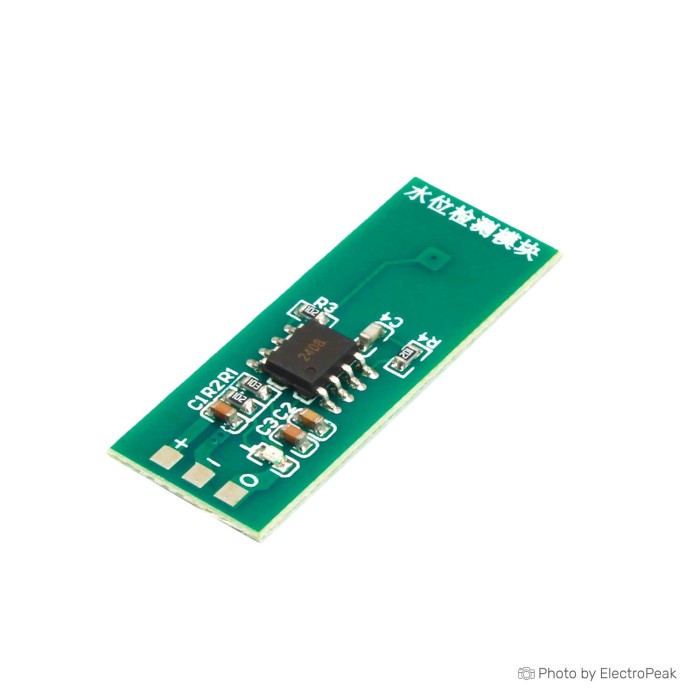

The M03 Non-contact Water Liquid Level Module is designed for detecting the presence of water or other liquids without direct contact. It operates on a supply voltage of 3.3V to 5V and has a sensing distance typically ranging from 3mm to 4.5mm. This compact module is ideal for applications where direct contact with the liquid is not feasible or desirable. It provides a high-level output when no liquid is detected and a low-level output when liquid is present.
Specifications of M03 Non-contact Liquid Level Module
- Supply Voltage: 3.3V - 5V
- Sensing Distance: 3mm - 4.5mm
- Output: High level when no liquid, low level when liquid is detected
- Dimensions: 12mm x 31mm
- Interface:
- GND: Power supply ground
- VCC: Power supply 3.3V - 5V
- OUT: Output
Applications of M03 Non-contact Liquid Level Module
- Water level detection in tanks
- Liquid level monitoring in pipelines
- Overflow prevention in containers
- Industrial liquid level sensing
- Non-contact liquid level detection in household appliances
How to Use M03 Non-contact Liquid Level Module
- Connections:
- GND: Connect to the ground of the power supply.
- VCC: Connect to a 3.3V to 5V power supply.
- OUT: Connect to the input port of a microcontroller or other device to receive the output signal.
- Operation:
- When the sensor detects the presence of liquid, it will output a low level signal.
- When no liquid is detected, the sensor will output a high level signal.
