ZEMCT303A 40A/40mA Current Transformer

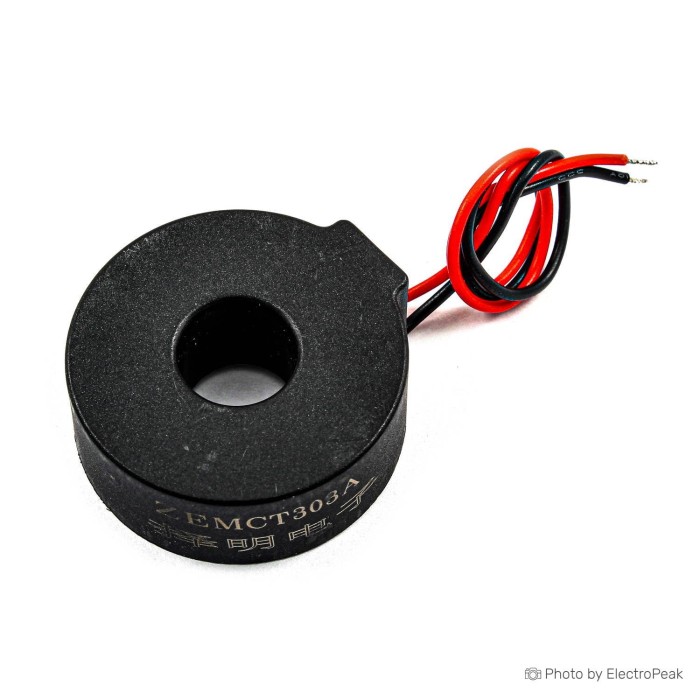

ZEMCT303A Current Transformer is a compact current transformer for isolating and converting high current into a lower current for measurement applications. It supports current measurement, accurate power measurement, overcurrent detection, and protection of relays and measuring equipment. The transformer uses epoxy encapsulation and is designed for precise current and voltage measurement. The output leads are red and black, with the same polarity on P1 and the red wire. It is a straight-through type current transformer with an operating temperature range of -40ºC to +85ºC.

Features of ZEMCT303A Current Transformer - 40A/40mA, 1000:1

• Compact current transformer
• Epoxy encapsulation
• High measurement accuracy
• Stable current conversion
• Red and black output leads
• Straight-through type installation

Specifications of ZEMCT303A Current Transformer - 40A/40mA, 1000:1

• Model: ZEMCT303A
• Rated input current: 5~40A
• Rated output current: 5~40mA
• Turns ratio: 1000:1
• Accuracy: ±1%
• Phase angle error: ≤200' (input 10A, sampling resistor: 100 ohms)
• Linear range: 0~400A (sampling resistor: 5 ohms)
• Linearity: ≤5% (5%~120%)
• Permissible error: less than -5%
• Operating temperature: -40ºC to +85ºC
• Encapsulation: Epoxy
• Installation: Straight-through type
• Output leads: Red, black
• Same polarity: P1 and red wire

How to Use ZEMCT303A Current Transformer - 40A/40mA, 1000:1

1. Install the transformer in a straight-through arrangement.
2. Connect the red and black output leads with the correct polarity.
3. Use it for current measurement or related measuring equipment.

More Info

• Suitable for energy, power, and current display equipment
• Supports motor soft-start current sampling
