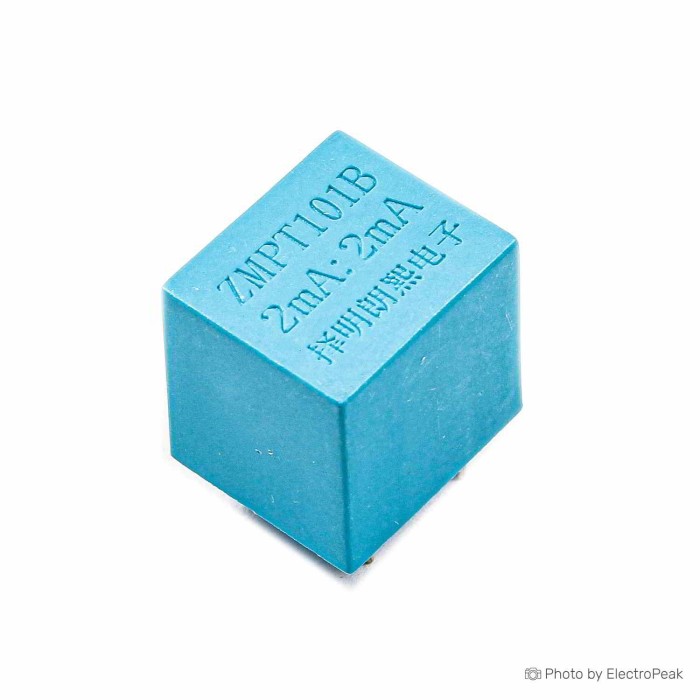

ZMPT101B 2mA/2mA Precision Voltage Transformer
$0.6000
In stock
SKU
SEN-04-046
Volume discounts:
- +50 5 % $0.5700
- +100 7 % $0.5600
- +300 8 % $0.5500
- +500 12 % $0.5300
- +1000 13 % $0.5200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ZEMCT303A 40A/40mA Current Transformer Previous
ZMPT101B Voltage Transformer is a high-precision module for voltage and power measurement. It is designed for accurate transformation of AC voltage signals into a lower voltage signal. The ZMPT101B 2mA/2mA Precision Voltage Transformer uses a 1000:1000 turns ratio and is suitable for PCB-mounted measurement circuits. It offers a rated input current of 2mA and a rated output current of 2mA. This voltage transformer is built with epoxy encapsulation and supports installation on a PCB with pin length greater than 3mm.
Features of ZMPT101B Voltage Transformer - 2mA/2mA, 1000:1000
- High-precision voltage measurement
- Power measurement support
- 2mA rated input current
- 2mA rated output current
- 1000:1000 turns ratio
- ≤20' phase angle error
- ≤0.2% linearity
- 4000V isolation voltage
- Epoxy encapsulation
- PCB mounting support
Specifications of ZMPT101B Voltage Transformer - 2mA/2mA, 1000:1000
- Model: ZMPT101B
- Rated input current: 2mA
- Rated output current: 2mA
- Turns ratio: 1000:1000
- Phase angle error: ≤20' (input 2mA, sampling resistor 100Ω)
- Linear range: 0~1000V (sampling resistor 100Ω)
- Linear range: 0~10mA (sampling resistor 100Ω)
- Linearity: ≤0.2% (20%dot~120%dot)
- Permissible error: -0.3% ≤ f ≤ +0.2% (input 2mA, sampling resistor 100Ω)
- Isolation voltage: 4000V
- Application: voltage and power measurement
- Encapsulation: Epoxy
- Installation: PCB mounting (Pin Length>3mm)
- Operating temperature: -40ºC~+70ºC
- Size: 16.7mm x 19.2mm x 18.6mm
How to Use ZMPT101B Voltage Transformer - 2mA/2mA, 1000:1000
- Connect the transformer to the measurement circuit.
- Use a suitable sampling resistor with the output.
- Mount the device on a PCB with pin length greater than 3mm.
More Info
- Designed for voltage and power measurement circuits.
- Suitable for PCB-based electronics projects.
| Linearity | ≤0.2% (20%dot~120%dot) |
|---|---|
| Phase Angle Error | ≤20' (input 2mA, sampling resistor 100Ω) |
