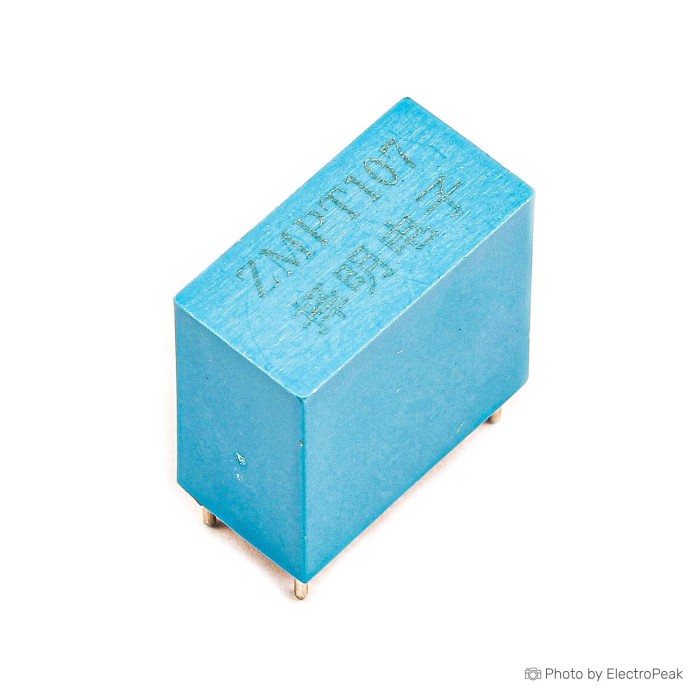

ZMPT107 Voltage Transformer - 2mA/2mA
$0.5900
In stock
SKU
BAT-02-058
Volume discounts:
- +50 5 % $0.5600
- +100 7 % $0.5500
- +300 10 % $0.5300
- +500 12 % $0.5200
- +1000 14 % $0.5100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ZMPT101B 2mA/2mA Precision Voltage Transformer Previous
The ZMPT107 Voltage Transformer is a high-accuracy voltage measurement component for electronics and industrial applications. It features a 2mA primary current and 2mA secondary current for precise measurement output. The turns ratio is 1000:1000, and the isolation voltage is 4000V. It is designed for voltage and power measurement, with epoxy encapsulation and PCB mounting. The operating temperature range is -40°C to +70°C. The ZMPT107 Voltage Transformer suits isolated AC voltage monitoring and other measurement-focused projects.
Features of ZMPT107 Voltage Transformer - 2mA/2mA, 4000V
- High-accuracy voltage measurement
- 2mA primary current
- 2mA secondary current
- 1000:1000 turns ratio
- 4000V isolation voltage
- Epoxy encapsulation
- PCB mounting
- Wide operating temperature range
Specifications of ZMPT107 Voltage Transformer - 2mA/2mA, 4000V
- Model: ZMPT107
- Primary Current: 2mA
- Secondary Current: 2mA
- Max Output Current: 2.5mA
- Turns Ratio: 1000:1000
- Phase Angle Error: ≤ 45'
- Linear Range: 0~1000V to 0~10mA (sampling resistance 50Ω)
- Linearity: ≤ 0.2% (20% to 120% input)
- Allowable Error: -0.6% to 0% (at 2mA input, 50Ω sampling resistor)
- Isolation Voltage: 4000V
- Application: Voltage and power measurement
- Encapsulation: Epoxy
- Installation: PCB mounting
- Operating Temperature: -40°C to +70°C
How to Use ZMPT107 Voltage Transformer - 2mA/2mA, 4000V
- Install the transformer on a PCB.
- Use it in voltage and power measurement circuits.
- Operate it within the stated current, voltage, and temperature limits.
More Info
- Suitable for isolated measurement applications.
- Designed with 4000V isolation for high-voltage separation.
| Phase Angle Error | ≤ 45' |
|---|
