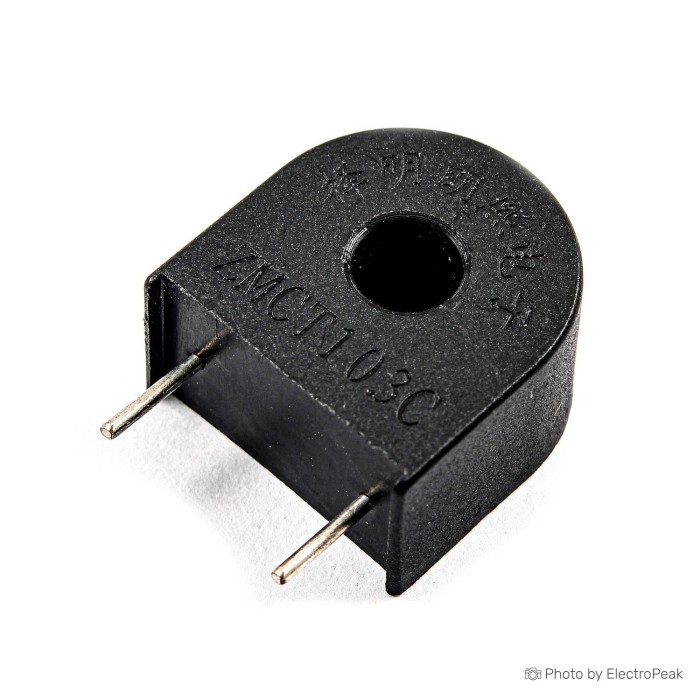

ZMCT103C 5A/5mA Precision Current Transformer
$0.2400
In stock
SKU
SEN-04-048
Volume discounts:
- +100 4 % $0.2300
- +1000 8 % $0.2200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
High Frequency Transformer Booster Coil Inverter - 15kV Previous
ZMCT103C Current Transformer is a precision current transformer for current isolation and conversion. It converts a 5A input current to a 5mA output current with a 1000:1 turns ratio. The module is designed for accurate current and voltage measurement. It features epoxy packaging and a compact form factor. It is also suitable for AC current measurement with Arduino, ESP8266, and Raspberry Pi.
Features of ZMCT103C Current Transformer - 5A/5mA, 1000:1
- 5A input current
- 5mA output current
- 1000:1 turns ratio
- High accuracy
- Stable performance
- Epoxy packaging
- Compact size
Specifications of ZMCT103C Current Transformer - 5A/5mA, 1000:1
- Model: ZMCT103C
- Input current: 5A
- Output current: 5mA
- Turns ratio: 1000:1
- Accuracy: 0.2
- Linear range: 0-10A (sampling resistor: 100 ohms)
- Linearity: ≤0.2% (5%~120%) dot
- Permissible error: less than -5%
- Operating frequency: 45-55 Hz
- Filling material: Epoxy
- Operating temperature: -40 to 70°C
- Size: 18x24 mm
How to Use ZMCT103C Current Transformer - 5A/5mA, 1000:1
- Connect the current path through the transformer.
- Use the output for current measurement and related monitoring circuits.
More Info
- Designed for current isolation and conversion.
- Suitable for AC current measurement applications.
| Operating Temp (°C) | -40 to +70 °C |
|---|---|
| Dimensions (mm) | 18x24 mm |
| Mounting Type | THT (Through Hole) |
| Output Type | Analog Current |
| Accuracy | 0.2 |
| Bandwidth | 45-55 Hz |
| Current Range (A) | 0-10 A |
| Material | Epoxy |
| Model | ZMCT103C |
| Turns Ratio | 1000:1 |
| Channels | 1-channel |
| Display Type | None |
| Parameters | AC current measurement, Precision current measurement, Precision voltage measurement |
| Linearity | (Sampling resistor: 100 ohms); ≤0.2% (5%~120%) |
