XY-WT04 high temperature digital temperature controller
$8.9500
In stock
SKU
SEN-10-117
Volume discounts:
- +25 4 % $8.5800
- +50 6 % $8.3900
- +100 8 % $8.2000
- +300 10 % $8.0200
- +500 13 % $7.8300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MAX30205 High Accuracy Human Body Temperature Sensor Module Previous

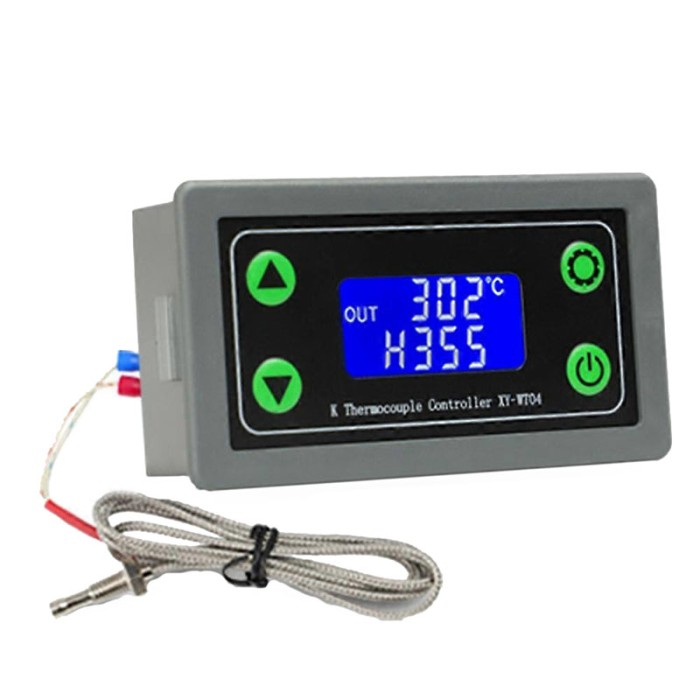

The XY-WT04 High Temperature Digital Thermostat is a versatile and compact temperature controller designed for high-temperature environments. It features a wide temperature control range from -99°C to 999°C and supports a K-type thermocouple for precise temperature measurement. With a simple, remote operation interface and a stable system, this controller is ideal for industrial, laboratory, or domestic applications. It includes a 1-way relay switch capable of controlling devices with a current exceeding 10A, ensuring reliable performance even in demanding environments.
Specifications of XY-WT04 High Temperature Digital Thermostat
-
Model: XY-WT04
-
Supply Voltage: DC 6-30V
-
Temperature Control Range: -99°C to 999°C
-
Resolution: 1°C
-
Temperature Measurement Accuracy: ±2°C
-
Measurement Input: K-type thermocouple
-
Output Type: 1-way relay switch
-
Maximum Control Current: 10A or more
-
Material: Plastic
-
Color: Gray-black
-
Size: 79 x 43 x 30mm
Datasheet of XY-WT04 High Temperature Digital Thermostat
| Operating Voltage (V) | 6-30V |
|---|---|
| Operating Temp (°C) | -99°C to 999°C |
| Dimensions (mm) | 79x43x30mm |
| Mounting Type | Panel Mount |
| Control Type | Relay (Electromechanical) |
| Channel Count | 1 |
| Switching Capacity | 10A/250VAC |
| Load Current (A) | 10A |
| Chipset | XY-WT04 |
| Relay Type | Relay output |
| Display Type | LCD |
| Material | Plastic |
| Input Type (AC/DC) | DC |
| Protocols | UART |
| Accessories | K-type thermocouple |
| Accuracy | ±2°C |
