XY-T04 High Temperature Digital Thermostat

The XY-T04 High Temperature Digital Thermostat is an intelligent temperature controller designed for both industrial and home applications. It features a K-type thermocouple sensor with a temperature range from -99°C to 999°C or -99°F to 999°F. This thermostat is ideal for smart home systems, industrial control, automatic irrigation, and indoor ventilation. It offers both button-based control and MODBUS control for seamless integration with microcontrollers for industrial-level automation. The device supports cooling and heating modes, automatic data saving, and high-temperature alarm functions, making it a versatile temperature management solution.

Specifications of XY-T04 High Temperature Digital Thermostat

• Model: XY-T04

• Input Voltage: DC 6V-30V

• Temperature Control Range: -99°C to 999°C / -99°F to 999°F

• Temperature Measurement Accuracy: ±2°C / ±2°F

• Temperature Control Precision: 0.1°C / 0.1°F

• Sensor Type: K-type thermocouple (1 meter)

• Output Type: Relay output (AC220V/DC30V, 10A)

• Control Methods: Button/MODBUS

• Working Temperature: -40°C to 85°C

• Working Humidity: 5%-95% RH

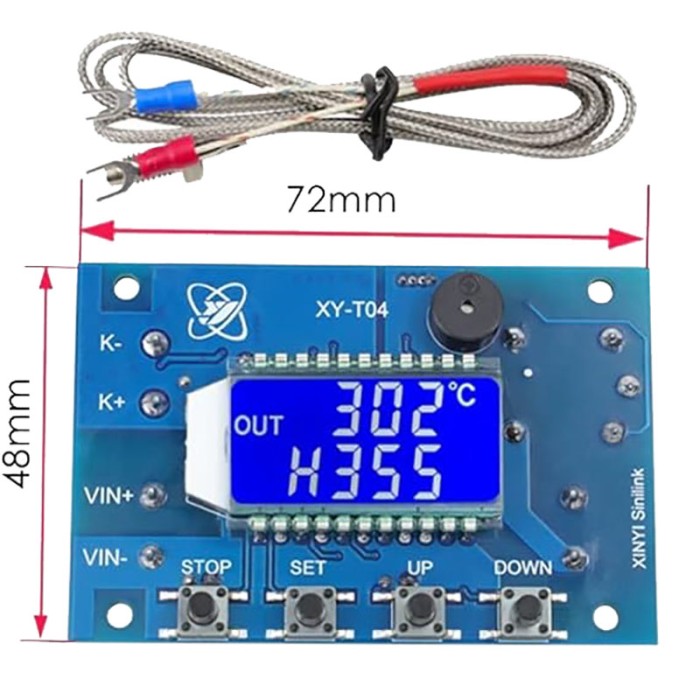

• Dimensions: 72 x 48 x 25 mm

How to use of XY-T04 High Temperature Digital Thermostat

1. Connect Power & Load: Ensure proper wiring as per the schematic to connect power and the load.

2. Set Temperature: Press SET and use the + and - buttons to adjust the desired temperature. Confirm by pressing ENT.

3. Choose Mode: Select heating mode (H) or cooling mode (C) based on your requirement.

4. Hysteresis Setting: Adjust the hysteresis temperature to define the difference between when the system turns on and off.

5. Delay Start Function: Optionally, set a delay time for load activation after reaching the set temperature.

6. Temperature Calibration: Use calibration mode to fine-tune temperature measurements.

7. Emergency Stop: Press the emergency stop button to turn off the relay and load.
