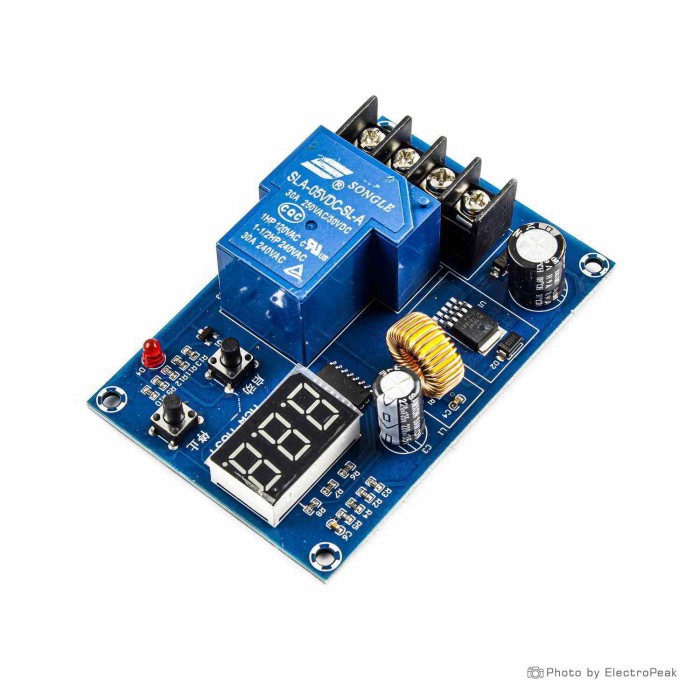

XH-M604 Lithium Battery Charging Control Module - 6-60V
$2.5000
In stock
SKU
BAT-03-038
Volume discounts:
- +50 5 % $2.3800
- +100 7 % $2.3200
- +300 10 % $2.2600
- +500 12 % $2.2000
- +1000 14 % $2.1400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Mini USB Discharging Module (with Fan) Previous
XH-M604 Lithium Battery Charging Control Module is a digital battery charging control module with a wide DC 6-60V input range. It is designed for charging batteries including lithium, dry, acid, and nickel-cadmium types. The module provides digital display monitoring for input and output voltage. It offers 0.1V display accuracy and 0.1V control accuracy. The output type is direct output. Voltage tolerance is ±0.1V. It is suitable for 6-60V batteries with a maximum of 80V. The module size is 81x54x18mm.
Features of XH-M604 Lithium Battery Charging Control Module - 6-60V
- Wide DC input range
- Digital voltage display
- 0.1V control accuracy
- Direct output type
- Battery charging control
Specifications of XH-M604 Lithium Battery Charging Control Module - 6-60V
- Input Voltage: DC 6-60V
- Display Accuracy: 0.1V
- Control Accuracy: 0.1V
- Output Type: direct output
- Voltage Tolerance: ±0.1V
- Apply For: 6-60V battery (max 80V)
- Dimension: 81x54x18mm
How to Use XH-M604 Lithium Battery Charging Control Module - 6-60V
- Set the start voltage in normal display mode using the start button.
- Long-press the start button until the value flashes, then adjust it with the start and stop buttons.
- Set the stop voltage in normal display mode using the stop button.
- Long-press the stop button until the value flashes, then adjust it with the start and stop buttons.
- Press and hold the start and stop buttons in the powered state to display 888 and restore factory settings.
More Info
- Digital numerical control battery charging module
- Model: XH-M604
| Compatible With | Lithium, dry, acid and nickel-cadmium batteries |
|---|---|
| Function | Battery Charging Control |
| Supported Battery Type | Li-ion, LiPo, LiFe, Pb, Ni-MH, Ni-Cd |
| Input Voltage (V) | DC 6-60V |
| Connector | Terminal Block |
| Display Type | 7-Segment |
| Dimensions (mm) | 81x54x18 |
| Mounting Type | Screw holes |
