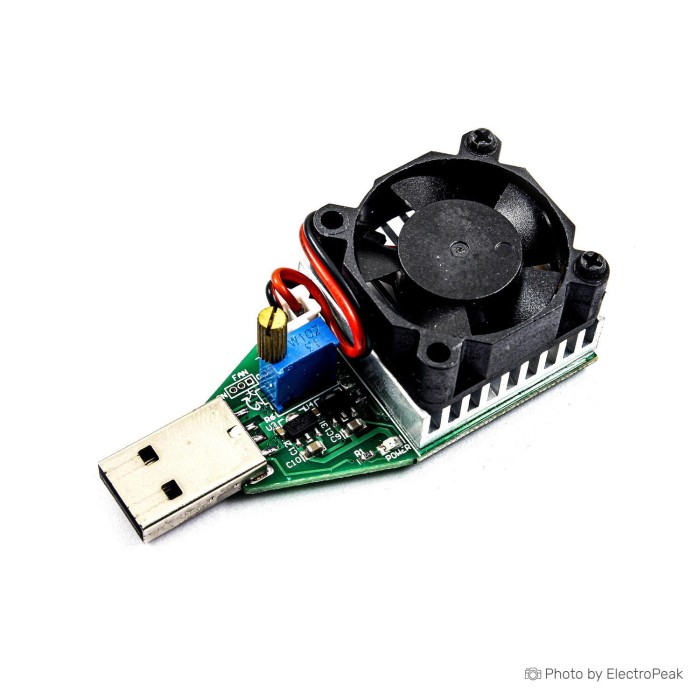

Mini USB Discharging Module (with Fan)

The Mini USB Discharging Module With Fan is a USB discharger with a cooling fan and an onboard current adjustment potentiometer. It is designed for DC voltage operation within the specified range and provides continuously adjustable discharge current. This module supports continuous discharge power and includes a compact board size. It is a practical electronics module for discharge testing and current adjustment applications.

Features of Mini USB Discharging Module With Fan - 3.7-13V, 15W

• USB discharging module
• Cooling fan included
• Onboard current adjustment potentiometer
• Continuously adjustable current
• Continuous discharge power support

Specifications of Mini USB Discharging Module With Fan - 3.7-13V, 15W

• Working voltage: 3.7 - 13V
• Discharge current range: 0.15-3A
• Discharge current adjustment: Continuously adjustable
• Power: 15W
• Dimensions: 30 * 68 mm

How to Use Mini USB Discharging Module With Fan - 3.7-13V, 15W

1. Connect the module within the specified working voltage range.
2. Adjust the current using the onboard potentiometer.
3. Use the module for continuous discharge within its rated specifications.

More Info

• Suitable for DC3.7-13V operation.
• At about 1A discharge current, the module operates at 13V.
• At 5V discharge current, the module operates at 3A.
