Dual USB Li-ion 18650 Battery Power Bank Charger Module - 5V, 1A-2A
$0.6500
In stock
SKU
BAT-03-051
Volume discounts:
- +50 5 % $0.6200
- +100 6 % $0.6100
- +300 8 % $0.6000
- +500 11 % $0.5800
- +1000 12 % $0.5700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
XH-M604 Lithium Battery Charging Control Module - 6-60V Previous

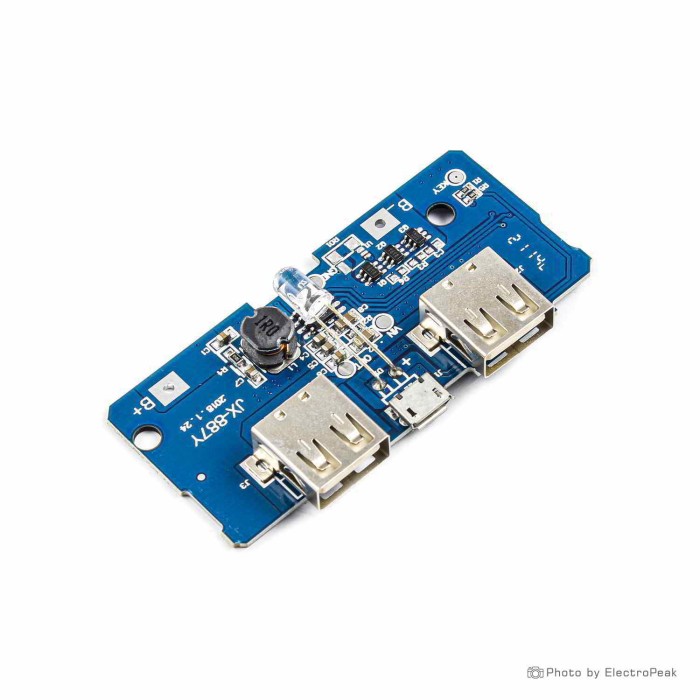

The Dual USB Li-Ion 18650 Power Bank Charger Module is a power bank DIY board for building custom USB power solutions. It supports 18650 lithium batteries and lithium polymer batteries. The module includes a MicroUSB input for charging and dual USB outputs for device charging. It also features automatic current adjustment and built-in protection functions for safer operation. An integrated flashlight is included and can be activated by pressing the button.
Features of Dual USB Li-Ion 18650 Power Bank Charger Module - 5V, 1A/2A
- Dual USB output
- MicroUSB charging input
- Automatic current adjustment
- Built-in battery protection
- Integrated flashlight
Specifications of Dual USB Li-Ion 18650 Power Bank Charger Module - 5V, 1A/2A
- Input: DC 5V-1A
- Input port: Micro USB
- Output: Two USB ports
- Output: 5V-1A
- Output: 5V-2A
- Battery types: 18650 lithium batteries
- Battery types: Lithium polymer batteries
- Protection circuits: Overcharge protection
- Protection circuits: Over-discharge protection
- Protection circuits: Output current protection
- Protection circuits: Short-circuit protection
- Dimensions: 68x33x12 mm
- LED lights show the power
- Intelligent automatic shutdown in non-working state
How to Use Dual USB Li-Ion 18650 Power Bank Charger Module - 5V, 1A/2A
- Connect a compatible battery to the module.
- Charge the battery through the MicroUSB input.
- Use the USB ports to power or charge connected devices.
- Press the button to activate the flashlight when needed.
More Info
- Suitable for custom power bank builds.
- LED indicators display power status.
| Compatible With | 18650 lithium batteries or lithium polymer batteries |
|---|---|
| Function | Power Bank |
| Charging Voltage (Pack) | 5V |
| Supported Battery Type | Li-ion, LiPo |
| Input Voltage (V) | 5V |
| Output Voltage (V) | 5V |
| Output Current (A) | 1A, 2A |
| Connector | Micro USB |
| Max Charging Current | 1A |
| USB Connector | USB, Micro USB |
| Port Configuration | Dual USB Output |
| Protection | Overcharge protection,Over-discharge protection,Output current protection,Short-circuit protection |
| Display Type | LED |
| Indicator LEDs | Power status indicators |
| Dimensions (mm) | 68x33x12 mm |
