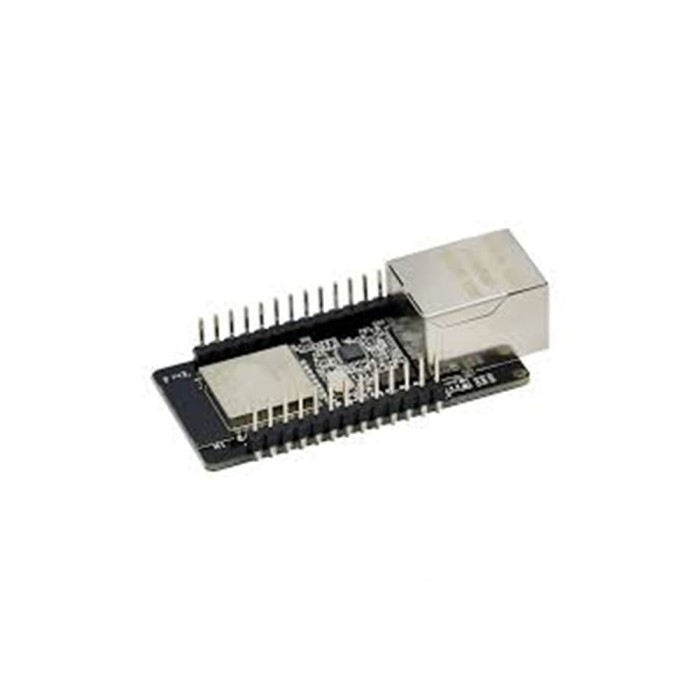

WT32-ETH01 development board

WT32-ETH01 is an embedded serial port to Ethernet module based on the ESP32 series. The module integrates an optimized TCP/IP protocol stack, allowing users to easily complete the networking function of embedded devices, greatly reducing development time and cost. In addition, the module is compatible with half-pad and connector through-hole designs. The board width is a universal width. The module can be welded directly on the board, the connector can also be welded, and it can also be used on a breadboard, making it convenient for users to use in different scenarios.
The ESP32 series IC is a SOC that integrates 2.4GHz Wi-Fi and Bluetooth dual-mode.
It has ultra-high radio frequency performance, stability, versatility and reliability, as well as ultra-low power consumption.

Specification of WT32-ETH01 development board

• Type of communications module : Ethernet
• Components : LAN8720A, WT32-S1
• Communication's protocol : Bluetooth, IEEE 802.11b/g/n/e/i
• Interface : SPI
• Number of pins: 26
• Operating temperature: -40...85°C
• Wi-Fi Protocol: 802.11 b/g/n/e/i (802.11n, speeds up to 150Mbps) A-MPDU and A-MSDU aggregation, supporting 0.4_s guard interval
• Bluetooth Protocol: Compliant with Bluetooth V4.2 BR/EDR and BLE
• Network port specifications: RJ45, 10/100Mbps, cross-connect adaptive
• Serial port baud rate: 80-5000000
• Onboard Flash: 32Mbit
• Operating Voltage: 5V or 3.3V power supply (choose one)
• Working current: Average:80mA
• Supply current: Minimum:500mA
• Range of working temperature: -40°C~+85°C
• Ambient temperature range: normal temperature
• Wi-Fi mode: Station/softAP/SoftAP+station/P2P
• Wi-Fi security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
• Encryption type: AES/RSA/ECC/SHA
• Firmware upgrade: Remote OTA upgrade via network
• Software development: SDK is used for user secondary development
• Network protocol: IPv4, TCP/UDP
• How to obtain IP: Static IP, DHCP (default)
• User configuration: AT+ command set

Note:

You can access to more detailed data for this module by clicking on this link. Estraction code is: avpp

For more detailed specs of this module, click on this link.
