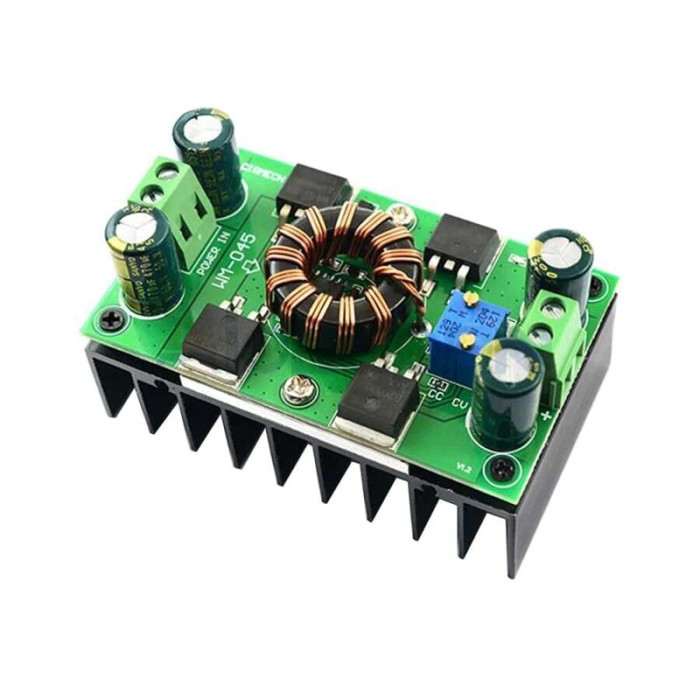

WM-045 Adjustable Voltage Regulator, Power Supply Module - 150W, 10A
$8.5000
In stock
SKU
BAT-02-189
Volume discounts:
- +25 4 % $8.1700
- +50 6 % $8.0000
- +100 8 % $7.8400
- +300 10 % $7.6700
- +500 12 % $7.5100
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
HW-398 USB Type-C PD Voltage Trigger Board Module
Previous
The WM-045 Adjustable Voltage Regulator, Power Supply Module is a versatile DC-DC buck-boost converter that allows for both step-up and step-down voltage regulation. It features a high efficiency of up to 90%, making it ideal for various power supply applications. With adjustable output voltage and current, the module is suitable for powering a wide range of devices, delivering up to 150W of power with a maximum output current of 10A.
Specifications of WM-045 Adjustable Voltage Regulator, Power Supply Module
-
Input Voltage: 5V to 30V DC
-
Output Voltage: 1.25V to 30V DC (Adjustable)
-
Output Current: Up to 10A (Maximum)
-
Power Output: 150W
-
Conversion Efficiency: Up to 90%
-
Ripple & Noise: 200mVp-p
-
No-Load Current: 6mA (Typical)
-
Voltage Regulation: ±0.5%
-
Load Regulation: ±0.5%
-
Dynamic Response Rate: 300μS
-
Dimensions: 76x45x73mm
Datasheet of WM-045 Adjustable Voltage Regulator, Power Supply Module
