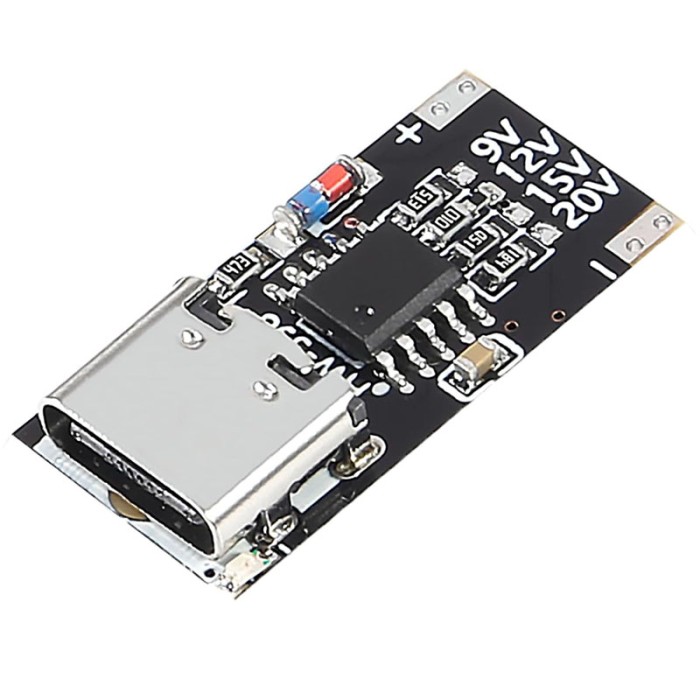

The HW-398 USB Type-C PD Voltage Trigger Board Module is designed to manipulate the output voltage of fast charging power banks or chargers that support protocols like PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, and AFC. This module can trick these chargers into providing different output voltages (9V, 12V, 15V, or 20V) for various applications such as powering routers and other DC-powered devices. It’s compact and versatile, making it ideal for DIY projects and electronic conversions.
Specifications of HW-398 USB Type-C PD Voltage Trigger Board Module
-
Input Voltage: USB Type-C (PD)
-
Output Voltage: Selectable 9V, 12V, 15V, 20V (based on shorting corresponding pads)
-
Maximum Output Current: 5A (actual output depends on the fast charging charger and load)
-
Fast Charging Protocols Supported: PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC
-
Power Supply Type: USB Type-C PD fast charging
-
Output Ripple: ---
-
Operating Temperature: ---
-
Board Size: 23x11.5x4mm
-
Power Dissipation: PD Module
-
Output Power: Determined by fast charging charger and load
Datasheet of HW-398 USB Type-C PD Voltage Trigger Board Module
Datasheet: Not available
