ZK-DPL DC-DC USB/Micro USB Buck Boost Power Supply Voltage Regulator Module

[BAT-02-190]
Shop with confidence Learn More
Availability: 582 items
SKU
BAT-02-190
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$3.25

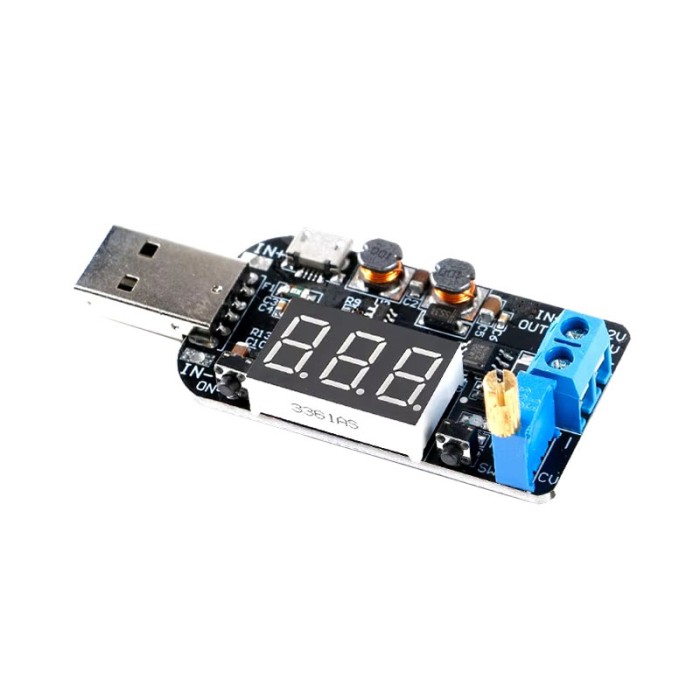

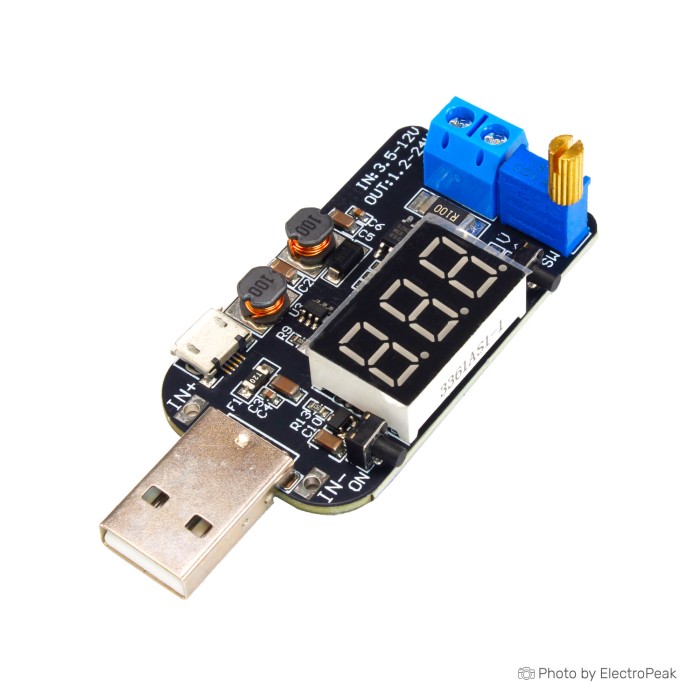

The ZK-DPL DC-DC Buck Boost Voltage Regulator Module is a versatile power supply module designed to provide adjustable step-up and step-down voltage regulation. It features a digital LED display for output voltage and current, offering high resolution and simple control. With multiple input methods and a wide range of applications, the ZK-DPL is suitable for use in testing circuits, voltage display, and power conversion tasks, providing a maximum power output of 3W.

Specifications of ZK-DPL DC-DC USB/Micro USB Buck Boost Power Supply Voltage Regulator Module

  • Product Number: ZK-DPL

  • Input Voltage (Pads): 3.5V to 12.0V DC

  • Input Voltage (USB): 5.0V DC

  • Output Voltage: 1.2V to 24.0V DC (Adjustable)

  • Max Output Power: 3W

  • Max Output Current: Dependent on load (Power limit: 3W)

  • Conversion Efficiency: 95%

  • Operating Temperature: -20°C to 85°C

  • Working Humidity: 0% to 95% RH

  • Display: 3-bit digital tube display for voltage and current

  • Dimensions: 68x30x22mm

Calibration of ZK-DPL DC-DC USB/Micro USB Buck Boost Power Supply Voltage Regulator Module

The ZK-DPL module allows for the calibration of both output voltage and current for accurate readings. Below are the steps for calibration:

Calibrate Output Voltage Accuracy:

  1. Enter Voltage Calibration Mode: Long press the "SW" button while displaying the output voltage until the screen starts flashing.

  2. Adjust Voltage:

    • Short press the "ON" button to decrease the value.

    • Short press the "SW" button to increase the value.

  3. Save Settings: Long press the "SW" button again to save and exit calibration mode.

Calibrate Output Current Accuracy:

  1. Enter Current Calibration Mode: Long press the "SW" button while displaying the output current until the screen starts flashing.

  2. Adjust Current:

    • Short press the "ON" button to decrease the value.

    • Short press the "SW" button to increase the value.

  3. Save Settings: Long press the "SW" button again to save and exit calibration mode.

Note: The higher the current, the more accurate the calibration. The module cannot display current if the output is less than 10-30mA.

Datasheet of ZK-DPL DC-DC USB/Micro USB Buck Boost Power Supply Voltage Regulator Module

Datasheet: Not available
