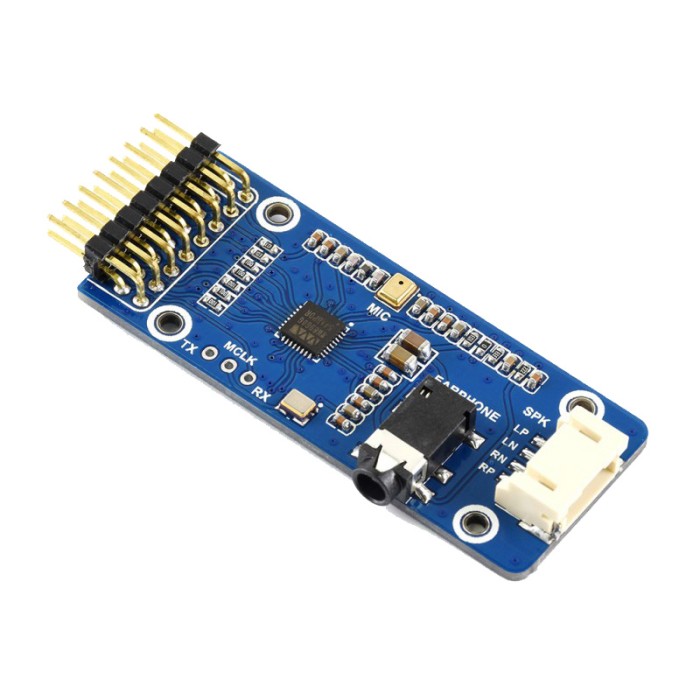

Waveshare WM8960 Stereo CODEC Audio Module, Play/Record
$15.4500
In stock
SKU
MOD-04-020
Volume discounts:
- +25 3 % $14.9100
- +50 5 % $14.6300
- +100 7 % $14.3600
- +300 9 % $14.0900
- +500 11 % $13.8200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TWS 100W Bluetooth 5.2 Mono Power Amplifier Board Previous
The Waveshare WM8960 Stereo CODEC Audio Module is a compact, low-power solution designed for high-quality audio encoding, decoding, and recording. Based on the WM8960 chip, this module supports stereo sound, integrates a high-quality MEMS silicon microphone, and can directly drive speakers to play music. With a range of supported audio sampling rates and additional sound effects like stereo and 3D surround, this module is ideal for various audio applications. It also includes a 3.5mm earphone jack for external mic recording and comes with development resources, including STM32 examples for both playing and recording audio.
Specifications of Waveshare WM8960 Stereo CODEC Audio Module, Play/Record
-
CODEC: WM8960
-
Operating Voltage: 3.3V
-
Control Interface: I2C
-
Audio Interface: I2S
-
Audio Format: WAV
-
DAC Signal-to-Noise Ratio: 98dB
-
ADC Signal-to-Noise Ratio: 94dB
-
Earphone Driver: 40mW (16Ω @ 3.3V)
-
Speaker Driver: 1W per channel (8Ω BTL)
-
Supported Sampling Rates: 8/11.025/22.05/44.1/48KHz
-
Dimensions: 58 x 24 mm
-
Special Features:
-
Integrated MEMS silicon microphone
-
Onboard 3.5mm 4-segment earphone jack for external mic recording
-
Dual-channel speaker interface for direct speaker drive
-
Support for sound effects like stereo and 3D surround
-
More Information about Waveshare WM8960 Stereo CODEC Audio Module, Play/Record
Wiki of Waveshare WM8960 Stereo CODEC Audio Module, Play/Record
| Interface Type | I2C, I2S |
|---|---|
| Operating Voltage (V) | 3.3V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 58 x 24 mm |
| Mounting Type | Screw holes |
| Audio Function | Audio Recording and Playback |
| Output Power | 40mW (16Ω @ 3.3V), 1W per channel (8Ω BTL) |
| Speaker Impedance (Ω) | 4Ω, 8Ω, 16Ω |
| Sampling Rate (Hz) | 8/11.025/22.05/44.1/48KHz |
| Weight (g) | 18 |
| Audio Formats | WAV |
| Input Types | external mic |
| Bluetooth Ver. | No |
| Output Type | Analog |
| Channels | 2-channel |
| Chipset | WM8960 |
| Signal-to-Noise Ratio (SNR) | 98dB; 94dB |
