TPA3255 High Power Stereo Amplifier Module
SAVE
As low as $31.9500
In stock
Only %1 left
SKU
MOD-04-022
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare WM8960 Stereo CODEC Audio Module, Play/Record Previous

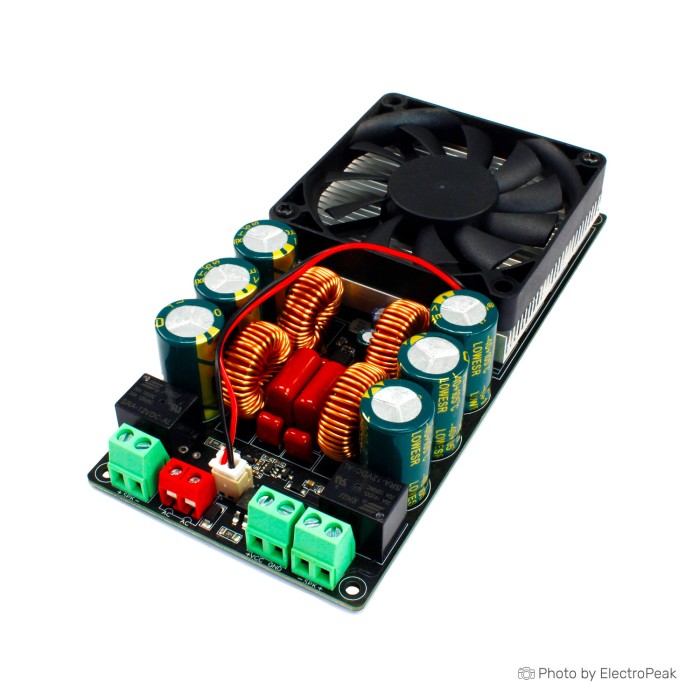

The TPA3255 High Power Stereo Amplifier Module is a Class D digital stereo power amplifier board designed for powerful audio output. It is available in 2X500W and 2X600W configurations. The module supports 4-8 ohm speakers and uses imported MOS tubes and all-digital chips from Japan. A horn relay provides delayed on/off protection and transient shutdown. The module is built with high-quality SMT technology and supports a DC 12V-70V input range.
Features of TPA3255 High Power Stereo Amplifier Module
- Class D digital stereo design
- 2X500W and 2X600W versions
- 4-8 ohm speaker support
- Horn relay protection
- Imported MOS tubes
- All-digital chips from Japan
- High-quality SMT technology
Specifications of TPA3255 High Power Stereo Amplifier Module
- Power Output: 2X500W at 60V 4Ω, 2X250W at 8Ω
- Power Output: 2X600W at 70V 4Ω, 2X300W at 8Ω
- Supported Impedance: 4-8 ohms
- Power Supply Range: 2X500W: DC 12V ~ 60V
- Power Supply Range: 2X600W: DC 12V ~ 70V
- Protection: Horn relay with delayed on/off and transient shutdown
- Key Components: Imported MOS tubes, all-digital chips from Japan
- Material: High-quality SMT technology, excellent workmanship
- Input Voltage: DC 12V-70V
How to Use TPA3255 High Power Stereo Amplifier Module
- Connect a DC power supply within the supported voltage range.
- Wire speakers with 4-8 ohm impedance to the output.
- Use the module according to the selected 2X500W or 2X600W configuration.
More Info
- Designed as a stereo amplifier module for audio applications.
- Provides delayed switching protection to reduce impact sound.
| Operating Voltage (V) | 12V-70V |
|---|---|
| Audio Function | Amplifier |
| Output Power | 2x600W (Max) |
| Speaker Impedance (Ω) | 4Ω, 8Ω |
| Input Types | Analog |
| Bluetooth Ver. | No |
| Output Type | Analog |
| Channels | 2-channel |
| Chipset | TPA3255 |
