Waveshare ESP32-S3R8 Development Board
$11.5000
In stock
SKU
DEV-02-019
Volume discounts:
- +25 4 % $11.0400
- +50 6 % $10.8200
- +100 8 % $10.5900
- +300 10 % $10.3600
- +500 12 % $10.1300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ESP32-CAM Plus Development Board With OV5640 Camera Previous

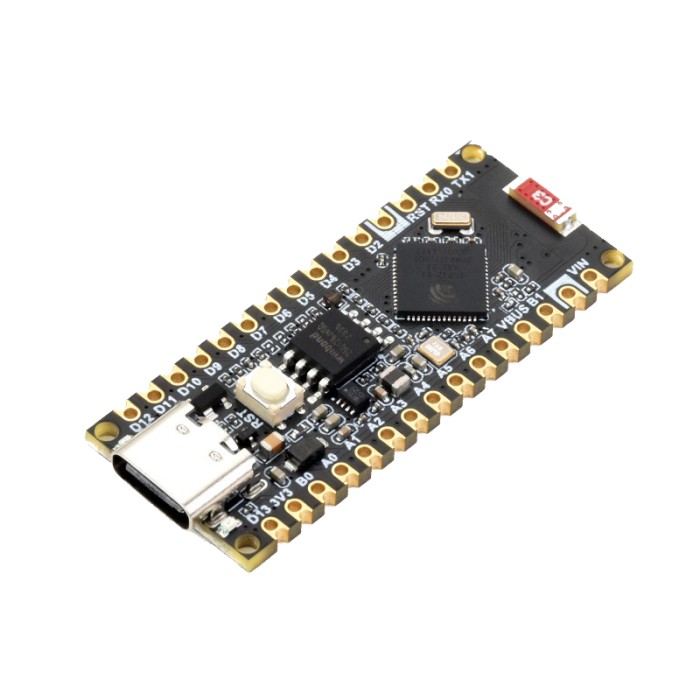

The Waveshare ESP32-S3R8 Development Board is a compact and powerful development board that adopts the ESP32-S3R8 chip. It is compatible with Arduino Nano ESP32, making it ideal for IoT and MicroPython applications. The board supports seamless switching between Arduino and MicroPython programming, offering flexibility and ease of integration into various projects. With integrated Wi-Fi and Bluetooth LE, superior RF performance, and extensive memory, this board is suitable for a wide range of applications.
Specifications of Waveshare ESP32-S3R8 Development Board
- Main Chip: ESP32-S3R8
- Processor: Xtensa® 32-bit LX7 dual-core, 240 MHz
- Memory: 512KB SRAM, 384KB ROM, 8MB PSRAM, 16MB Flash
- Operating Voltage: 3.3V
- Power Input: 6~21V
- Reset Button: Yes (Vertical)
- IO Pin Output Current: 40mA
- Pins definition:
- Digital Pins: 14
- Analog Pins: 8
- DAC: None
- PWM: 5 pins
- 5v Output Power: 1000mA
- Communication Protocols: UART*2, I2C*1, SPI*1
- Wireless Communication: 2.4GHz Wi-Fi, Bluetooth LE
- Programming Support: Arduino, MicroPython, ESP-IDF
- Cloud Compatibility: Arduino IoT Cloud
- USB HID Support: Yes (emulates keyboards or mice)
- Dimensions: Compatible with Arduino Nano form factor
- Operating Temperature: -40°C to 85°C
Datasheet of Waveshare ESP32-S3R8 Development Board
| MCU/SoC | ESP32-S3R8 |
|---|---|
| Product Family | ESP32 |
| Architecture | Tensilica Xtensa LX7 |
| CPU Cores | dual-core |
| Clock Speed (MHz) | 240 MHz |
| Flash | 16MB |
| SRAM | 512KB |
| External Memory | 8MB PSRAM |
| GPIO Pins | 14 |
| SPI interface Pins | 1 |
| I2C interface Pins | 1 |
| UART interface Pins | 2 |
| USB Ports | 1 x USB Type-C |
| Ethernet Support | No |
| ADC Channels | 8 |
| DAC Channels | None |
| PWM Channels | 5 pins |
| Operating Voltage (V) | 3.3V |
| GPIO Voltage (V) | 3.3V |
| GPIO Current (mA) | 40mA |
| Wireless | Bluetooth LE, 2.4GHz Wi-Fi |
| Form Factor | Compatible with Arduino Nano form factor |
| IDE Support | MicroPython, Arduino, ESP-IDF |
| Input Voltage (V) | 6~21V |
| Antenna Type | Internal Antenna |
| Bluetooth Ver. | 5 |
| Operating Temp (°C) | -40°C to 85°C |
