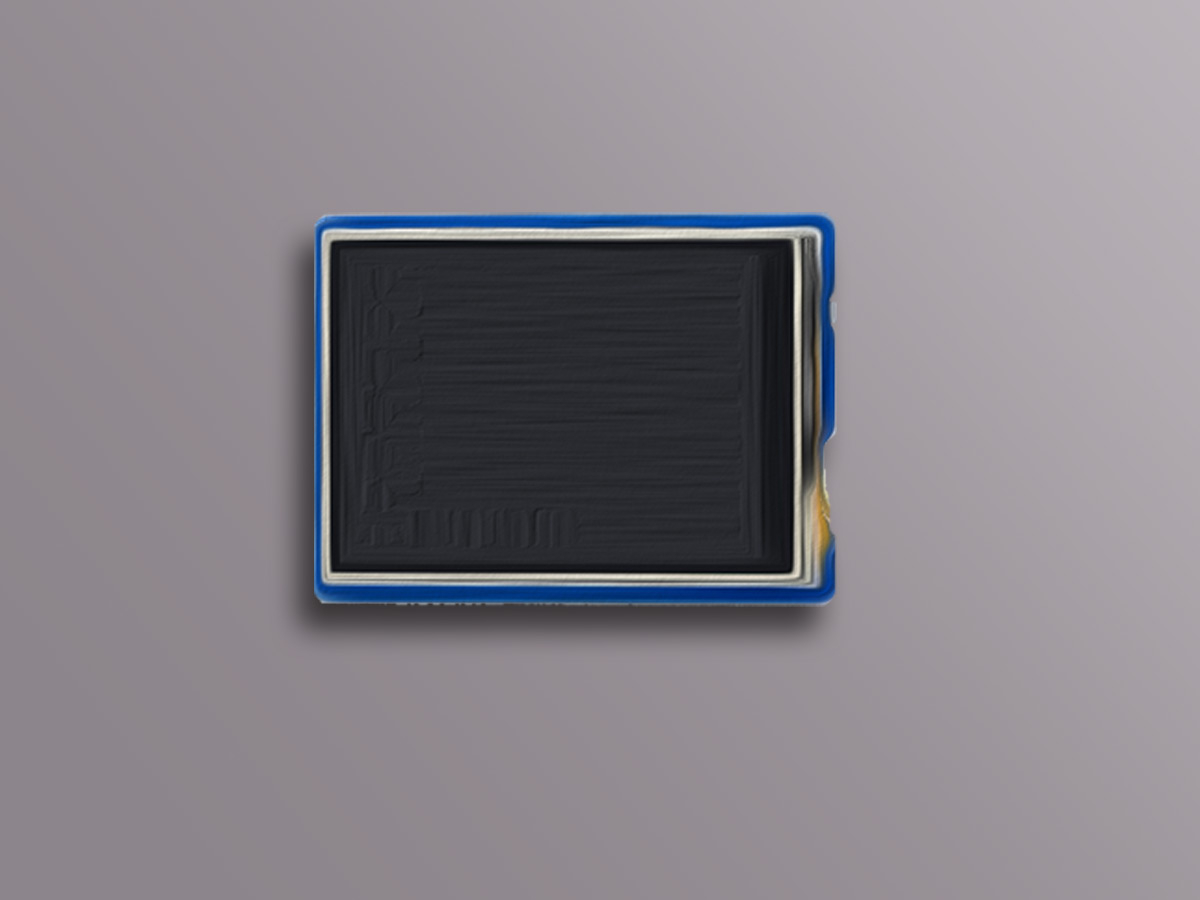

Waveshare 2.8inch Touch LCD Shield for Arduino
$15.6000
In stock
SKU
ARD-02-055
Volume discounts:
- +25 4 % $15.0000
- +50 6 % $14.7000
- +100 8 % $14.4000
- +300 10 % $14.1000
- +500 12 % $13.8000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare 7inch 1024x600 IPS HDMI LCD Type C Previous
Waveshare 2.8 Inch Touch LCD Shield for Arduino is a TFT LCD shield with a 2.8 inch resistive touch screen and a 320x240 resolution. It uses a standard Arduino interface and is compatible with development boards such as Arduino UNO, Leonardo, UNO PLUS, NUCLEO, and XNUCLEO. The shield uses SPI control to reduce the number of Arduino pins required. It includes a Micro SD slot for storing photos for display. Backlight adjustment by program is also supported for lower power consumption.
Features of Waveshare 2.8 Inch Touch LCD Shield for Arduino
- 2.8 inch TFT LCD
- Resistive touch screen
- SPI control
- Micro SD slot
- Programmable backlight adjustment
- Standard Arduino interface
- Standalone touch controller
Specifications of Waveshare 2.8 Inch Touch LCD Shield for Arduino
- LCD Type: TFT
- LCD Interface: SPI
- LCD Controller: HX8347D
- Touch Screen Type: Resistive
- Touch Screen Controller: XPT2046
- Colors: RGB
- Colors: 65K colors
- Resolution: 320x240 (Pixel)
- Display Size: 43.2x57.6 mm
- Overall Size: 73.3x55.3 mm
- I/O Voltage: 3.3V/5V
How to Use Waveshare 2.8 Inch Touch LCD Shield for Arduino
- Connect the shield to a compatible development board.
- Use the SPI interface for LCD control.
- Insert a Micro SD card if you want to display stored photos.
- Adjust the backlight by program if needed.
More Info
- Compatible with Arduino UNO, Leonardo, UNO PLUS, NUCLEO, and XNUCLEO.
- Touch input is handled through the onboard controller.
| Platform | Arduino Uno, Leonardo, NUCLEO, Uno Plus, XNUCLEO |
|---|---|
| Display Size | 2.8 inch |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 320×240 |
| Display Driver | HX8347D |
| Display Interface | Shield, SPI |
| Panle Type | TFT |
| Display Color Type | Full Color |
| Touchscreen Type | Resistive |
| Backlight Type | White LED |
| Operating Voltage (V) | 3.3V/5V |
