3.5inch TFT LCD - Parallel, 37 Pin, ILI9488 Driver
$6.9500
In stock
SKU
LCD-01-182
Volume discounts:
- +25 4 % $6.6500
- +50 6 % $6.5000
- +100 9 % $6.3500
- +300 11 % $6.2000
- +500 13 % $6.0500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare 2.8inch Touch LCD Shield for Arduino Previous

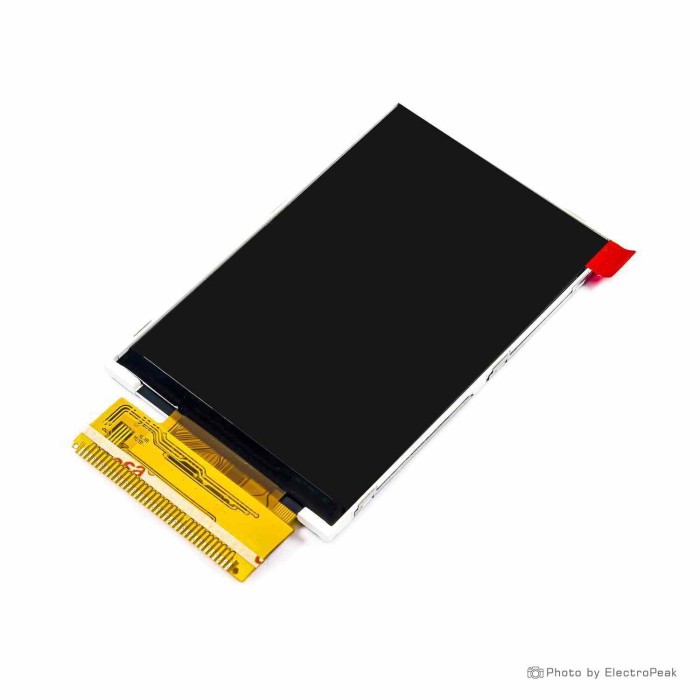

This 3.5-inch full-color TFT LCD is a great choice for display-focused projects requiring clear visuals. It uses the ILI9488 driver and supports both 8-bit and 16-bit parallel interfaces (default is 16-bit, switchable via resistor). The display has a 37-pin FPC connector with 1 mm pin pitch and does not include a touch panel, making it suitable for data or image display applications only.
Specifications of 3.5-Inch Full-Color TFT Display with Parallel Interface and ILI9488 Driver, 37-Pin FPC
- Type: TFT & IPS LCD
- Size: 3.5 inches
- Resolution: 320(W) x 480(H) RGB
- Control Chip: ILI9488
- Display Color: Full-color
- Screen Area: 48.96(W) x 73.44(H) mm
- Physical Size: 55.26(W) x 84.52(H) x 2.7(T) mm
- Interface Type: 8/16-bit Parallel (default 16-bit, switchable via resistor)
- Number of Pins: 37
- Pin Pitch: 1 mm
- Working Voltage: 2.8 ~ 3.3V
- Working Current: 90 mA
- Power Consumption: 0.32W
- Backlight Type: 6 LEDs
- Working Temperature: -20 to +70°C
| Display Size | 3.5 inch |
|---|---|
| Display Size Range | 3.5 inch to 6.9 inch |
| Display Resolution | 320x480 RGB pixels |
| Display Driver | ILI9488 |
| Display Interface | Parallel |
| Panle Type | TFT |
| Display Color Type | Full Color |
| Touchscreen Type | None |
| Backlight Type | White LED |
| Operating Temp (°C) | -20 to +70°C |
| Operating Voltage (V) | 2.8 to 3.3 V |
| Pins | 37 |
| Pitch (mm) | 1 mm |
