W1401 Digital Thermostat
$2.7500
In stock
SKU
SEN-10-125
Volume discounts:
- +25 4 % $2.6400
- +100 6 % $2.5800
- +300 8 % $2.5200
- +500 11 % $2.4600
- +1000 12 % $2.4100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
AM2320 Temperature and Humidity Sensor (Original) Previous

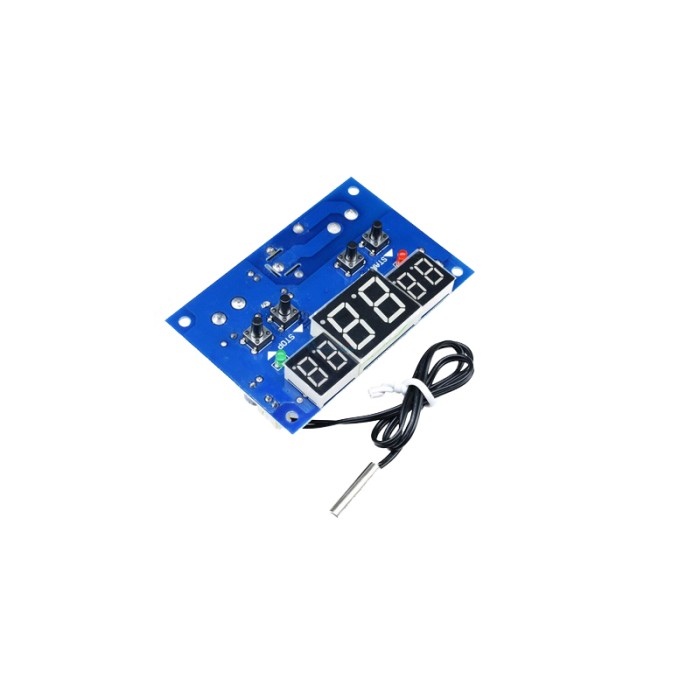

The W1401 Digital Thermostat is a temperature control module designed for precision temperature management in a wide range of applications. Equipped with an NTC(3950-10K 1%) waterproof sensor, it can accurately monitor and control temperatures between -9°C and 99°C. This versatile thermostat operates on 12V and supports output relay contact control, allowing it to handle up to 230V and 2A loads. Its compact size and high accuracy make it ideal for DIY projects, home automation systems, and industrial temperature regulation.
Specifications of W1401 Digital Thermostat
-
Accuracy: ±1°C
-
Humidity Range: 20% ~ 85%
-
Physical Size: 78mm x 51mm
-
Operating Voltage: 12V
-
Output: Relay Contact - 0V ~ 230V 2A
-
Response Time: 0.5 seconds
-
Temperature Sensor: NTC(3950-10K 1%) Waterproof type
-
Temperature Range: -9°C ~ 99°C
Datasheet of W1401 Digital Thermostat
| Operating Voltage (V) | 12V |
|---|---|
| Operating Current (mA) | 65mA |
| Operating Temp (°C) | -9°C to 99°C |
| Dimensions (mm) | 78mm x 51mm |
| Mounting Type | Screw holes |
| Control Type | Relay (Electromechanical) |
| Channel Count | 1 |
| Switching Capacity | 0V to 230V 2A |
| Load Current (A) | 2A |
| Relay Type | Relay output |
| Display Type | LED |
| Material | PCB |
| Input Type (AC/DC) | DC |
| Accessories | NTC Temperature Sensor Probe |
| Accuracy | ±1°C |
| Humidity Range | 20% to 85% |
