XY-T01 Digital Thermostat
$2.9500
In stock
SKU
SEN-10-124
Volume discounts:
- +25 4 % $2.8400
- +100 6 % $2.7800
- +300 7 % $2.7300
- +500 9 % $2.6700
- +1000 11 % $2.6200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
W1401 Digital Thermostat Previous

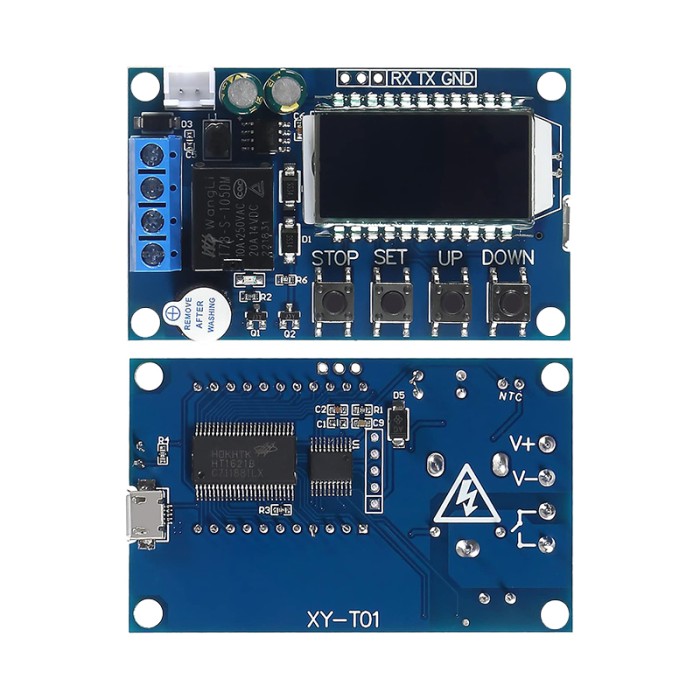

The XY-T01 Digital Thermostat is a versatile and user-friendly temperature control module, ideal for a wide range of heating and cooling applications. With a high-precision NTC-10K B3950 sensor, it measures temperatures from -50°C to 110°C and displays readings on its easy-to-read LCD screen. The thermostat offers flexible power input options with support for DC 6V-30V or Micro USB (5V). Its compact design makes it convenient for use in various electronic projects, home automation, and industrial settings.
Specifications of XY-T01 Digital Thermostat
-
Product Number: XY-T01
-
Operating Voltage: DC 6V-30V or 5V Micro USB
-
Control Load Current: 10A (Max)
-
LCD Refresh Rate: 0.5 seconds
-
Temperature Sensor: NTC-10K B3950
-
Test Temperature Range: -50 ~ 110 ℃
-
Control Sensitivity: 0.1 ℃
-
Sensor Length: 0.5 meter
-
Sensor Probe Specifications: 4mm x 30mm Stainless Steel
-
Physical Size: 68mm x 42mm x 21mm
Datasheet of XY-T01 Digital Thermostat
| Interface Type | USB, UART |
|---|---|
| Operating Voltage (V) | DC 6V-30V or 5V Micro USB |
| Operating Temp (°C) | -50°C to 110°C |
| Dimensions (mm) | 68mm x 42mm x 21mm |
| Mounting Type | Screw holes |
| Control Type | Relay (Electromechanical) |
| Channel Count | 1 |
| Switching Capacity | 10A/250VAC,5A/30VDC |
| Load Current (A) | 10A |
| Chipset | XY-T01 |
| Relay Type | Relay output |
| Display Type | LCD |
| Material | PCB |
| Input Type (AC/DC) | DC |
| Protocols | UART |
| Accessories | NTC-10K B3950 Temperature Sensor |
