25V Voltage Sensor Module
$0.2200
In stock
SKU
SEN-04-010
Volume discounts:
- +100 5 % $0.2100
- +1000 9 % $0.2000
25V Voltage Sensor Module is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
0-30V DC Analog Voltage Meter Panel Previous

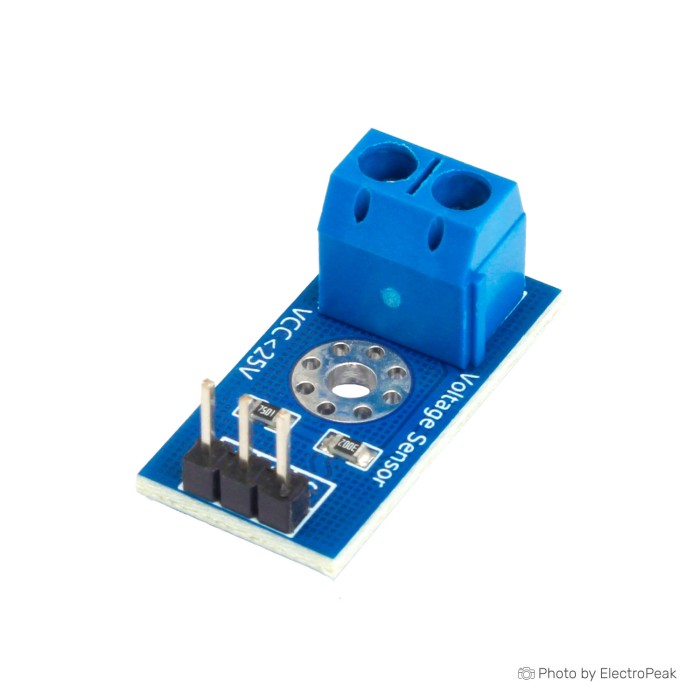

The 25V Voltage Sensor Module is a resistive divider-based voltage measurement module for monitoring higher input voltages with a microcontroller analog input. It provides a reduced output voltage for reading with 5V or 3.3V systems. The module supports voltage monitoring and voltmeter projects. It is designed for DC voltage measurement within its specified range.
Features of 25V Voltage Sensor Module - DC 0-25V, 0.00489V
- Resistive divider design
- Voltage monitoring support
- Voltmeter building support
- Analog output for microcontroller input
Specifications of 25V Voltage Sensor Module - DC 0-25V, 0.00489V
- Input voltage range: DC0-25V
- Analog output voltage resolution: 0.00489V
- Voltage detection range: DC0.02445V-25V
- Output voltage range: DC 0-5V
- Input interface: positive and negative for connection to the measurement point
- Output interface "+": not connected
- Output interface "S": output voltage for microcontrollers
- Output interface "-": negative output
- Size: 25mm x 13mm
How to Use 25V Voltage Sensor Module - DC 0-25V, 0.00489V
- Connect the positive input terminal to VCC.
- Connect the negative input terminal to GND.
- Connect the "S" output to the microcontroller AD pin.
- Connect "+" to 5V or 3.3V and "-" to GND.
More Info
- Designed for 5V and 3.3V microcontroller analog input systems.
- The module reduces the input voltage by a factor of 5.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 5V |
| Mounting Type | Screw holes |
| Output Type | Analog Voltage |
| Resolution | 0.00489V |
| Voltage Range (V) | DC0-25V |
| Material | PCB |
| Channels | 1-channel |
| Display Type | None |
| Parameters | Voltage |
