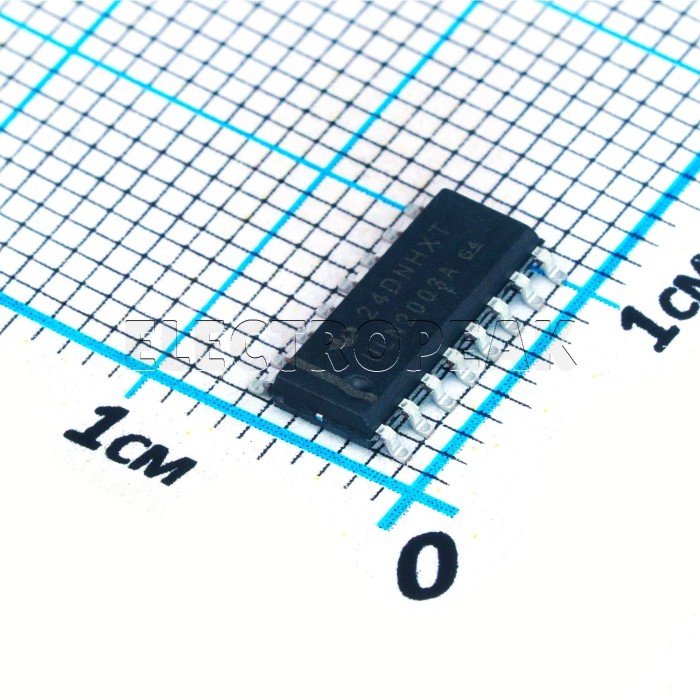

ULN2003, Darlington Transistor, SO-16
$0.0370
In stock
SKU
S3-0005
Volume discounts:
- +500 3 % $0.0360
- +1000 5 % $0.0350
- +5000 8 % $0.0340
- +10000 11 % $0.0330
ULN2003, Darlington Transistor, SO-16 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ULN2803APG, Darlington Transistor, DIP-18 Previous
The ULN2003 NPN Darlington Array is a seven-transistor driver in an SO-16 package. It is designed for controlling high-current loads such as relays, motors, and LED displays. The ULN2003D transistor provides a compact solution for electronics and robotics control applications. Its specifications make it a useful Darlington transistor array for general switching tasks.
Features of ULN2003 NPN Darlington Array - SO-16
- NPN Darlington array
- Seven transistors
- SO-16 package
- High-current load control
- Suitable for relays, motors, and LED displays
Specifications of ULN2003 NPN Darlington Array - SO-16
- Transistor type: NPN Darlington Array
- Number of transistors: 7
- Collector-emitter voltage (Vceo): 50 volts
- Collector current (Ic): 500 milliamperes
- Current gain (hFE): Minimum 1000
- Power dissipation (Pd): Maximum 2 watts
- Operating temperature: From -40 to +105°C
- Package: SO-16
How to Use ULN2003 NPN Darlington Array - SO-16
- Place the device in the appropriate circuit footprint for the SO-16 package.
- Connect the load control lines to the Darlington array channels.
More Info
- ULN2003D is an NPN Darlington array.
- The package type is SO-16.
| Package | SO-16 |
|---|---|
| Packaging | Tape & Reel |
| Polarity | NPN Type |
| Mounting Type | SMD/SMT |
| Components - Type | Darlington Transistors |
