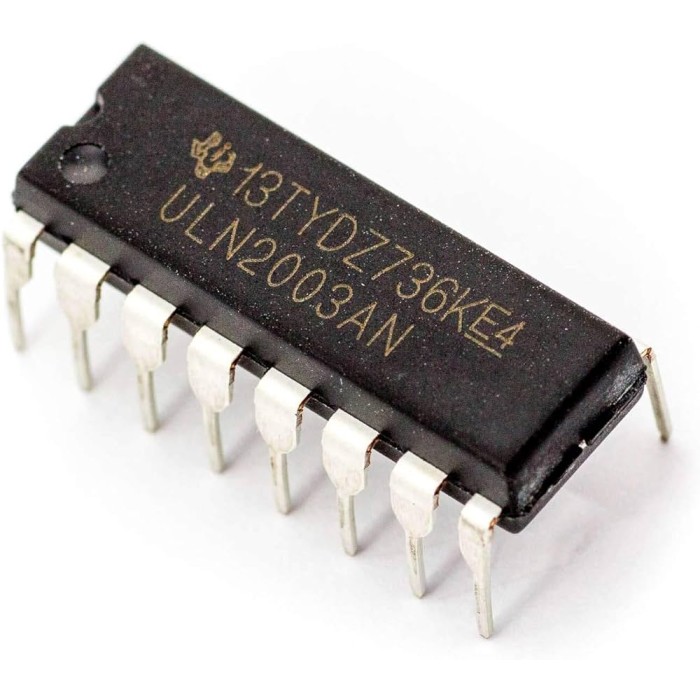

ULN2003, Darlington Transistor, DIP-16
$0.0420
In stock
SKU
S3-0006
Volume discounts:
- +500 5 % $0.0400
- +5000 7 % $0.0390
- +10000 10 % $0.0380
- +20000 12 % $0.0370
ULN2003, Darlington Transistor, DIP-16 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ULN2003, Darlington Transistor, SO-16 Previous
The ULN2003N is an NPN Darlington array in a DIP-16 package. It contains seven individual Darlington transistors. This transistor array is suitable for controlling high-current loads such as relays, motors, and LED displays. The ULN2003N is a practical electronics and robotics component for switching applications. Its compact package supports integration into board-level designs.
Features of ULN2003 NPN Darlington Array - DIP-16
- NPN Darlington array
- Seven transistors
- DIP-16 package
- High-current load control
Specifications of ULN2003 NPN Darlington Array - DIP-16
- Transistor Type: NPN Darlington Array
- Number of Transistors: 7
- Collector-Emitter Voltage (Vceo): 50 volts
- Collector Current (Ic): 500 milliamperes
- Current Gain (hFE): Minimum 1000
- Power Dissipation (Pd): Maximum 2 watts
- Operating Temperature: From -40 to +105°C
- Package: DIP-16
How to Use ULN2003 NPN Darlington Array - DIP-16
- Place the device in the circuit design as required.
- Connect the load according to the application.
- Use the transistor array for switching control.
More Info
- Designed for relay, motor, and LED display control.
- Contains seven separate Darlington transistors.
| Package | DIP-16 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -20 C° |
| Operating Temperature Max | 70 C° |
| Polarity | NPN Type |
| Mounting Type | Through Hole |
| Components - Type | Darlington Transistors |
