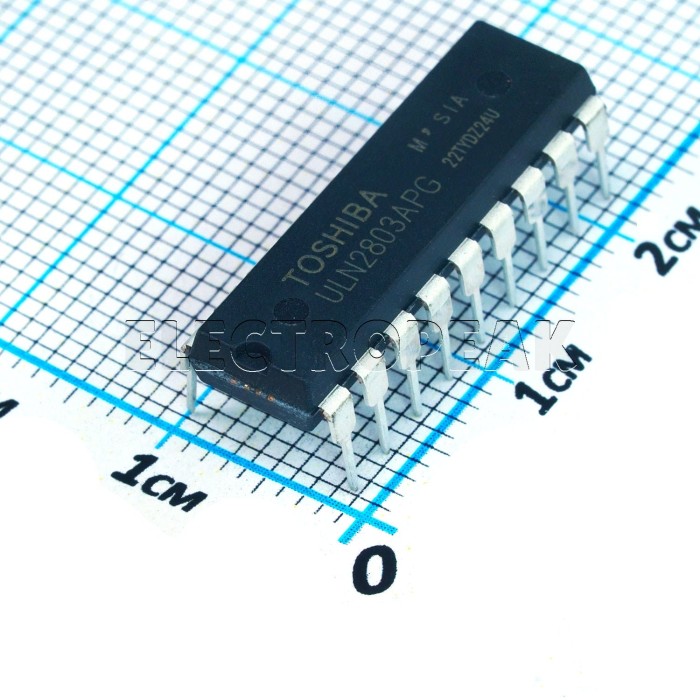

ULN2803APG, Darlington Transistor, DIP-18
$0.0970
In stock
SKU
S3-0004
Volume discounts:
- +100 2 % $0.0950
- +500 3 % $0.0940
- +1000 4 % $0.0930
- +10000 5 % $0.0920
ULN2803APG, Darlington Transistor, DIP-18 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ULN2004 DIP, Darlington Transistor, DIP-16 Previous
The ULN2803APG NPN Darlington Array is a transistor chip with eight individual Darlington transistors. It comes in a DIP-18 package and is designed for high-current load control. This ULN2803APG transistor is suitable for relays, motors, and LED displays. The device provides a compact solution for multi-channel switching applications.
Features of ULN2803APG NPN Darlington Array - DIP-18
- NPN Darlington array
- Eight transistors
- DIP-18 package
- High-current load control
Specifications of ULN2803APG NPN Darlington Array - DIP-18
- Transistor Type: NPN Darlington Array
- Number of Transistors: 8
- Collector-Emitter Voltage (Vceo): 50 volts
- Collector Current (Ic): 500 milliamperes
- Current Gain (hFE): Minimum 1000
- Power Dissipation (Pd): Maximum 1.47 watts
- Operating Temperature: From -40 to +105°C
- Package: DIP-18
How to Use ULN2803APG NPN Darlington Array - DIP-18
- Place the transistor chip in the DIP-18 circuit layout.
- Connect the load control lines to the appropriate channels.
- Use the device for the intended load switching circuit.
More Info
- Suitable for relay control
- Suitable for motor control
- Suitable for LED display control
| Package | DIP-18 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | 85 C° |
| Polarity | NPN Type |
| Mounting Type | Through Hole |
| Components - Type | Darlington Transistors |
