TM1638 8-Digit 7-Segments with 8 Push Buttons
$1.6400
In stock
SKU
LCD-01-086
Volume discounts:
- +50 5 % $1.5600
- +100 8 % $1.5100
- +300 10 % $1.4700
- +500 13 % $1.4300
- +1000 15 % $1.3900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MAX7219 8-Digit 7-Segment Display Module Previous

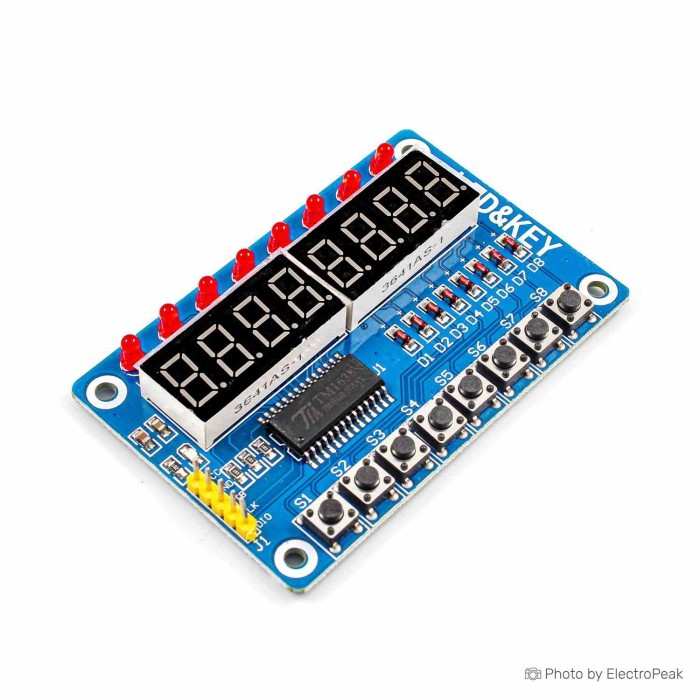

TM1638 8-Digit 7-Segment Display Module is a 7-segment display board with 8 push buttons and 8 LEDs. It is designed for use with Arduino and other electronics projects that need simple display and key input control. The TM1638 driver helps reduce MCU involvement in driving the display, LEDs, and buttons. The board uses 3 control pins for operation: Strobe, Clock, and Data. It also includes the listed power and physical specifications for integration into your project.
Features of TM1638 8-Digit 7-Segment Display Module - 8 Buttons, 8 LEDs
- 8-digit 7-segment display
- 8 push buttons
- 8 red LEDs
- TM1638 driver
- 3 control pins
- Arduino-ready module
Specifications of TM1638 8-Digit 7-Segment Display Module - 8 Buttons, 8 LEDs
- 8 red LEDs
- 8 seven-segment displays
- 8 push buttons
- Driver: TM1638
- Dimensions: 49x75 mm
- Weight: 48 g
- Allowable voltage: 12 V
- Input voltage: 3.3 - 5 V DC
- Input current: 0.24 A
- Supply Voltage: 5V DC
- Display: 8 x LED's and 8 x 7 Segment Displays
- Input: 8 x Push To Make Switches
- Control pins: Strobe, Clock and Data
- Size: 75 x 48 mm
How to Use TM1638 8-Digit 7-Segment Display Module - 8 Buttons, 8 LEDs
- Connect the power pins to the supply.
- Connect STB, CLK, and DIO to MCU IO pins.
- Read the registers or send display data as needed.
More Info
- The module combines display, LED, and button functions on one board.
- It is intended for simple control through a small number of IO pins.
| Model | TM1638 |
|---|---|
| Platform | Arduino Mega, Arduino Uno, Arduino Nano |
| Display Driver | TM1638 |
| Display Interface | I/O |
| Display Color Type | red |
| Touchscreen Type | None |
| Backlight Type | None |
| Operating Voltage (V) | 3.3 - 5 VDC |
| Dimensions (mm) | 49x75 mm |
