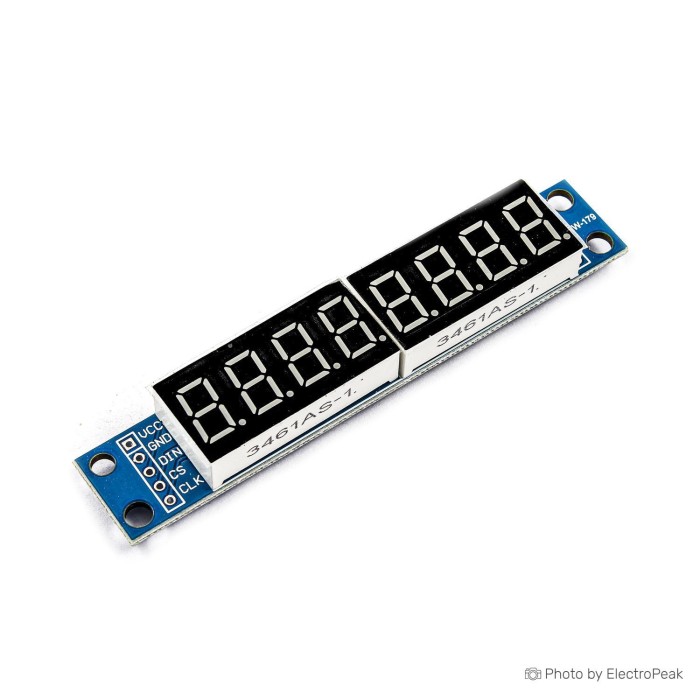

MAX7219 8-Digit 7-Segment Display Module
$1.0100
In stock
SKU
LCD-01-016
Volume discounts:
- +50 4 % $0.9700
- +100 7 % $0.9400
- +300 9 % $0.9200
- +500 11 % $0.9000
- +1000 13 % $0.8800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
3.5 inch TFT 320x480 LCD Display Shield for Arduino Uno/Mega Previous
The 8-digit 7-segment display module with MAX7219 driver is a widely used module for displaying numerical data in electronic projects. It includes two 4-digit 7-segment displays and is controlled by the MAX7219 chip through an SPI interface. This allows the module to operate with only three I/O pins from microcontrollers like Arduino. Furthermore, multiple modules can be daisy-chained using the same communication lines, making it easy to expand. The red display and compact design make it perfect for counters, timers, and digital display systems.
Specifications of 8-Digit 7-Segment Display Module with MAX7219 Driver
- Number of Digits: 8 digits (2 x 4-digit 7-segment)
- Driver: MAX7219
- Interface: SPI (10MHz)
- Segment Control: Each segment individually addressable
- Input Voltage: 5V
- Operating Current: Up to 380 mA
- Module Dimensions: 82 x 15 x 10 mm
- Display Area: Approximately 6.05 cm
- Segment Color: Red
| Platform | Arduino Mega, Arduino Uno, Arduino Nano |
|---|---|
| Display Size | 2.38 |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 8-digit |
| Display Driver | Max7219 |
| Display Interface | SPI |
| Display Color Type | red |
| Touchscreen Type | None |
| Backlight Type | None |
| Operating Voltage (V) | 5V |
| Pins | 3 |
| Dimensions (mm) | 82x15x10mm |
| Operating Current (mA) | 380mA |
