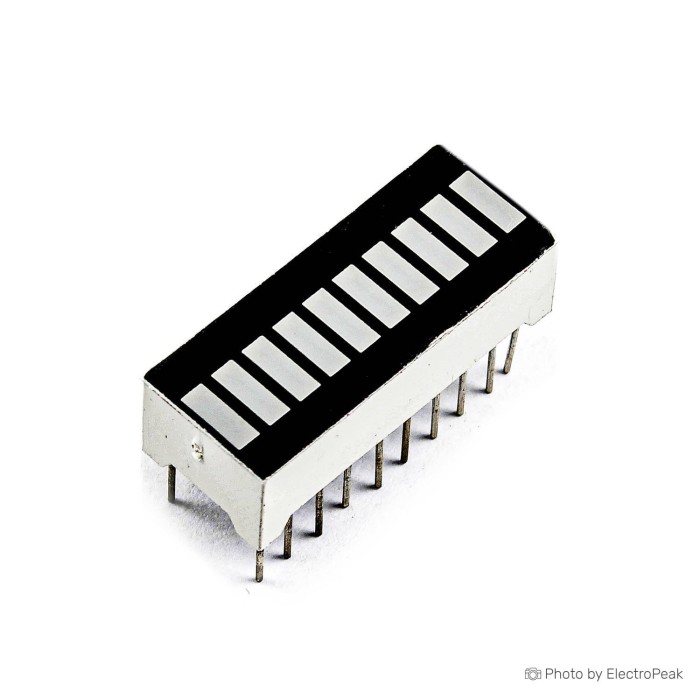

10 Segment LED Bar Graph (Red)
$0.2000
In stock
SKU
ELC-02-025
Volume discounts:
- +100 5 % $0.1900
- +1000 10 % $0.1800
- +10000 15 % $0.1700
10 Segment LED Bar Graph (Red) is available to buy in increments of 2
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TM1638 8-Digit 7-Segments with 8 Push Buttons Previous
The 10 Segment Red LED Bar Graph is a compact LED display component for electronic circuits and microcontroller projects. It provides a simple way to represent output levels using 10 individual segments. The module is suitable for digital readouts, signal level indication, power status display, and visual display applications. With a straightforward connection layout, it is easy to integrate into prototyping and finished designs. The 10 Segment Red LED Bar Graph offers a clear segmented display in a compact form factor.
Features of 10 Segment Red LED Bar Graph - 2.2V DC, 25mA
- 10 segments
- Red LED color
- Simple circuit connection
- Compact display format
- 20-pin package
Specifications of 10 Segment Red LED Bar Graph - 2.2V DC, 25mA
- Operating voltage: Approximately 2.2 volts DC
- Current: 25 mA
- 10 segments
- Number of bases: 20
- Color: Red
- Size: 25.5x10x6.5 mm
- Weight: 3 g
How to Use 10 Segment Red LED Bar Graph - 2.2V DC, 25mA
- Connect the bar graph to your electronic circuit or microcontroller.
- Drive the individual segments as needed for your display output.
More Info
- LED bar graph display component
- Suitable for digital output indication
