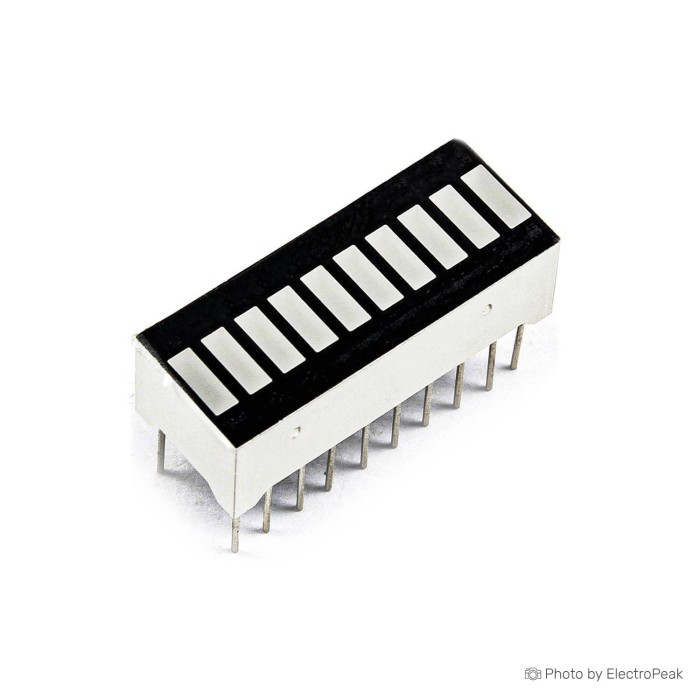

10 Segment LED Bar Graph (Green)

The 10 Segment LED Bar Graph (Green) is a compact LED display component for electronics and microcontroller circuits. It is designed with 10 individual segments and simple wiring. This LED bar graph can be used as an indicator display in digital and analog projects. The green segment color makes it suitable for clear visual output. The compact format supports straightforward integration into circuit designs.

Features of 10 Segment LED Bar Graph (Green) - 2.2V, 25mA

• 10 LED segments
• Green display color
• Simple circuit connection
• Compact LED arrangement
• 20-pin package

Specifications of 10 Segment LED Bar Graph (Green) - 2.2V, 25mA

• Operating voltage: Approximately 2.2V DC
• Current: 25 mA
• 10 segments
• 20 pins
• Color: Green
• Size: 25.5x10x6.5 mm
• Weight: 3 g

How to Use 10 Segment LED Bar Graph (Green) - 2.2V, 25mA

1. Connect the 20 pins to the circuit or microcontroller outputs.
2. Drive the segments to create a bar-style visual indicator.
3. Use the display to represent changing values in your project.

More Info

• Suitable for indicator and display applications.
• Built as a grouped LED display component.
