TDA7850 2.1 Channel 2*80W+120W Class AB Power Subwoofer Amplifier Board

TDA7850 2.1 Amplifier Board Review and Specifications

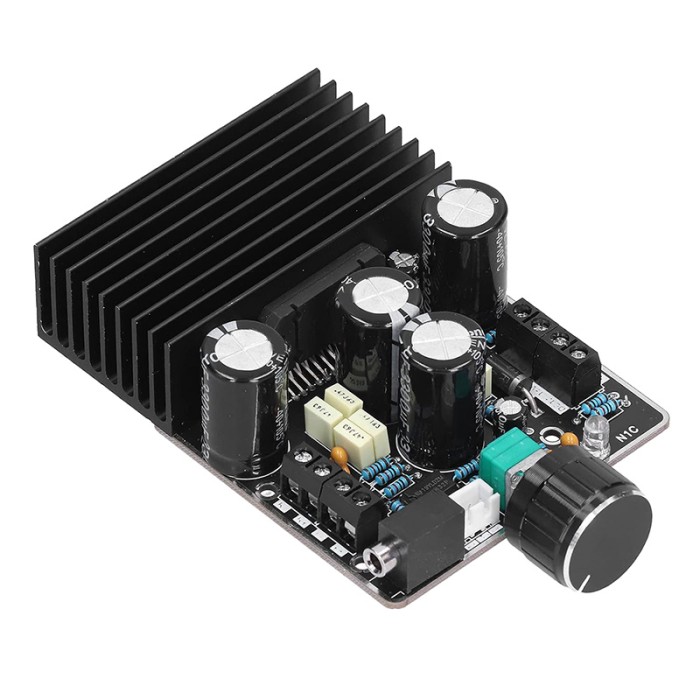

This compact TDA7850 2.1 Class AB amplifier board provides dedicated left, right, and subwoofer speaker outputs from a DC 12-18V power input. It is intended for hands-on DIY audio systems, vehicle setups, and custom enclosures where you provide the power source, speakers, and input cabling. The board is listed at 2*80W stereo plus 120W pure bass, but independently measured output figures for this specific board are unavailable; testing across the TDA7850 IC family indicates that buyers should expect more modest clean wattage in real use. Current catalog pricing is not supplied, although comparable generic listings for this board layout are observed around US$10–17. Browse other audio modules and sound-player boards to compare output and form-factor options.

Specifications of TDA7850 2.1 Channel 2*80W+120W Class AB Power Subwoofer Amplifier Board

• Operation Voltage: DC 12-18V
• Output Power: 2*80W stereo (18V/4Ω) + 120W pure bass (18V/4Ω)
• Channels: 2.1 channel (2 stereo + 1 subwoofer)
• Input Method: 3.5mm audio line input or 3P 2.54mm terminal block input
• Supported Impedance: 2Ω, 4Ω, 6Ω, 8Ω speakers
• Dimensions: PCB: 72.36x66.65mm
• Dimensions: Overall (including heat sink): 72x98x27mm
• Mounting Hole Spacing: 25.4x48.26mm (compatible with Bluetooth module spacing)
• Mounting Hole Size: M3
• Protection Features: Power input reverse connection protection, short circuit protection, overheat protection, overcurrent protection
• Potentiometer Handle Opening: 7mm

TDA7850 2.1 Amplifier Board Power, Inputs and Speaker Wiring

The TDA7850 2.1 amplifier board needs a clean DC supply between 12V and 18V. Voltage alone does not guarantee performance. Adequate supply current is critical to prevent premature clipping, audio distortion, or voltage sag under load. Practical testing indicates that a power source rated for at least 3A is necessary for basic operation, while 5A or more provides useful headroom during dynamic peaks and louder listening. A matched option such as the 12V 10A power supply delivers up to 120W at 12V, so the module does not run out of current under load.

Audio enters through an analog 3.5mm line-input jack or a 3-pin, 2.54mm pitch terminal block. The board has no onboard Bluetooth hardware; wireless audio requires an external Bluetooth receiver wired to one of these line-level inputs. On the output side, it supports 2Ω, 4Ω, 6Ω, and 8Ω speaker loads across the two stereo channels and the dedicated subwoofer output. An 8Ω speaker option falls within this impedance range for moderate listening levels. Driving 2Ω speakers at the maximum 18V supply voltage places the greatest thermal stress on the amplifier IC and requires careful cooling.

Speaker outputs on this board use bridge-tied load (BTL) architecture. Connect each speaker directly across its dedicated positive (+) and negative (-) output terminals. Never connect a speaker negative terminal to power ground, tie the negative terminals of different channels together, or wire output channels in parallel. Breaking this rule can trip the onboard protection circuitry or cause permanent chip failure.

For enclosure planning, the bare PCB measures 72.36x66.65mm, while the complete physical envelope with the mounted heat sink is 72x98x27mm. Four M3 mounting holes sit in a 25.4x48.26mm rectangular pattern that matches standard mounting dimensions on some add-on wireless daughtercards. The panel cutout for the onboard potentiometer shaft is 7mm. Exact filtering slopes and crossover cutoff frequencies for the subwoofer channel are not documented.

TDA7850 Subwoofer Amplifier Board Limitations and Power Expectations

The listed power specification is 2*80W stereo at 18V/4Ω plus 120W pure bass at 18V/4Ω. These figures are unverified theoretical ratings. Benchmark testing on related TDA7850 four-channel designs shows clean output closer to 13–16W per channel at 12V into 4Ω, rising to approximately 25W per channel at 14.4V into 4Ω. Independent output measurements for this exact 2.1 layout and its subwoofer channel are not available. Match speakers and set listening expectations around these Class AB operating levels rather than peak marketing figures.

Class AB amplifiers operate at lower electrical efficiency than Class D designs, so continuous loud playback generates significant heat. The mounted heat sink needs open airflow to maintain stable operating temperatures. During extended high-output bench tests, temperatures exceeding 60°C have been recorded near the IC. In a tight enclosure, additional heat-sink cooling or active ventilation helps avoid thermal limiting.

Controls are basic: the board has a single master volume potentiometer. There are no independent bass, treble, subwoofer-volume, or crossover-frequency adjustments. The board ships as a bare module without an enclosure, power supply, power switch, or printed documentation. It is an unbranded generic board design with no public schematics, board-level certifications, or traceable chip provenance. That matters because remarked or counterfeit chips occasionally surface in the low-cost TDA7850 market. An external Bluetooth module powered from the same DC supply rail can also occasionally introduce ground-loop hum unless isolated.

For projects needing higher sustained output, onboard wireless connectivity, or a wider DC 12-32V input range, the Bluetooth-enabled Class D 2.1 approach uses a distinct engineering architecture better suited to higher-efficiency wireless installations.

TDA7850 2.1 Amplifier Board vs 4-Channel TDA7850 Modules

The choice between this 2.1 board and other TDA7850-based boards depends on your planned speaker architecture rather than raw output differences, since all use the underlying TDA7850 silicon.

This 2.1 board is arranged for a sub-satellite system: two channels drive standard stereo speakers, and the third drives a passive subwoofer. The switchable four-channel TDA7850 routing module instead provides four discrete full-range channels, switchable between 2-channel and 4-channel modes. It uses an array of filter capacitors on a larger 128x86x29mm footprint and is restricted strictly to 12V DC. For compact vehicle audio or custom enclosures that need four fixed channels, the compact four-channel TDA7850 board incorporates a BA3121 noise-isolation IC, LC power filtering, and turn-on delay in a tiny 65x52x30mm package.

TDA7850 2.1 Amplifier Board Accessories and First Power-On Check

This board requires external hardware. You need a DC 12-18V power source, three speakers—left, right, and a subwoofer between 2Ω and 8Ω—speaker hookup wire, and a line-level audio cable. With no power toggle, the board becomes active as soon as DC voltage is applied to the terminals.

• DC Power Source (Required): Use a regulated 12-18V supply capable of at least 3A continuous (5A+ recommended). The 12V 10A power supply provides plenty of current headroom.
• Speakers (Required): Use three speakers within the 2Ω to 8Ω impedance range. An 8Ω speaker option can serve the satellite channels; two full-range drivers and one subwoofer driver are required.
• Audio Input Cable (Required): Connect your source with a 3.5mm stereo patch cable or a 3-pin 2.54mm terminal pigtail (sold separately).
• Speaker Wire (Required): Standard 18–22 AWG copper speaker hookup wire is required (sold separately).
• Supplemental Cooling (Recommended): In tight enclosures running high sustained loads, additional heat-sink cooling or active fan airflow prevents thermal limiting.
• Mounting Hardware (Recommended): Use M3 machine screws and standoffs to isolate the PCB underside (sold separately).
• Volume Knob (Recommended): Fit a standard control knob sized for the 7mm potentiometer opening (sold separately).
• External Bluetooth Receiver (Optional): Wire a 5V or 12V wireless receiver module into the line inputs for streaming audio (sold separately).

1. Verify that your power supply delivers DC 12-18V and that wire polarity is correct before connecting leads.
2. Connect each speaker to its designated terminal pair: Left, Right, and Subwoofer. Confirm that no negative speaker terminals contact ground or each other.
3. Plug your audio source into the 3.5mm input or wire it into the 3P terminal block.
4. Rotate the master volume potentiometer fully counterclockwise to minimum volume.
5. Energize your DC power supply. The board powers on immediately.
6. Play audio at low volume on your source device, then rotate the potentiometer clockwise to test all three channels.

Heavy distortion as volume rises usually means the power supply is dropping voltage from insufficient current capacity. Sudden dropouts during playback point to short-circuit protection tripping or thermal shutdown. If a wired external Bluetooth receiver produces audible hum through the speakers, check whether shared ground noise between the receiver and amplifier is bleeding into the audio path.

TDA7850 2.1 Amplifier Board FAQ

Is the TDA7850 2*80W + 120W rating continuous RMS power?

No. These listed values are peak marketing ratings at 18V into 4Ω. Family-level measurements on TDA7850 boards show clean output between 13W and 16W per channel at 12V, reaching roughly 25W at 14.4V into 4Ω. Independent output test data for this specific 2.1 board is not supplied.

What power supply does the TDA7850 2.1 amplifier board need?

The board operates on DC 12-18V and needs at least 3A of current capacity for moderate playback, with 5A or more recommended for dynamic peaks. A 12V 10A power supply provides clean voltage and sufficient current headroom.

Can the TDA7850 2.1 amplifier board run from a 12V car battery?

Yes. A standard 12V automotive battery falls within the board's DC 12-18V operating range. Install an appropriate inline fuse on the positive lead and ensure speaker terminals remain isolated from chassis ground.

Can I use a 24V power supply with the TDA7850 2.1 amplifier board?

No. The specified absolute maximum operating limit for this board is 18V DC. A 24V supply will trigger internal overvoltage protection or destroy the IC.

Does the TDA7850 2.1 amplifier board have Bluetooth?

No onboard Bluetooth hardware is included. Although the mounting-hole spacing accommodates standard Bluetooth expansion cards, audio input is strictly wired through the 3.5mm jack or the 3P terminal block.

What speaker impedance works with the TDA7850 2.1 amplifier board?

The amplifier supports speakers rated from 2Ω to 8Ω. Running 2Ω loads at high supply voltages generates significant thermal dissipation and requires open ventilation around the heat sink.

Can I ground the speaker negative terminals or connect them together?

No. The outputs are bridge-tied (BTL), so both the positive and negative terminals are actively driven. Tying negative speaker leads together or connecting them to power ground will short-circuit the output stages.

Does the TDA7850 2.1 amplifier board have bass, treble, or subwoofer controls?

No. The board includes only one master volume potentiometer. It has no built-in tone adjustment knobs, independent subwoofer-level trims, or variable crossover-frequency controls.

Should I choose this TDA7850 2.1 board or a four-channel TDA7850 module?

Choose this board for two satellite speakers and one passive subwoofer. For four discrete full-range outputs, use the switchable four-channel TDA7850 routing module or the compact four-channel TDA7850 board.

What should I choose if I need Bluetooth and a wider supply-voltage range?

The Bluetooth-enabled Class D 2.1 approach is an adjacent option with integrated Bluetooth 5.0, AUX inputs, higher power efficiency, and a wider DC 12-32V input range.

TDA7850 2.1 Amplifier Board Buying Decision

Ideal for:

• DIY audio hobbyists building a custom 2.1 desktop or workshop stereo powered by a 12V to 18V DC power source.
• Vehicle audio projects that need a dedicated subwoofer output alongside two main channels from a 12V electrical system.
• Builders who already have an external Bluetooth receiver or prefer direct wired analog 3.5mm input connections.

Maybe for:

• Low-impedance 2Ω speaker setups, provided the enclosure has unrestricted airflow or an active cooling fan to handle Class AB heat.
• Compact arcade-cabinet audio conversions where moderate listening levels are sufficient and 12V DC power is readily tapped.

Consider another option if:

• You need integrated wireless streaming without wiring separate Bluetooth boards. The Bluetooth-enabled Class D 2.1 approach includes Bluetooth 5.0 natively.
• Your power supply delivers 24V DC. This board will be damaged if operated above 18V.
• Your application requires dedicated knobs to independently adjust bass, treble, or subwoofer crossover points.
• You require verified high continuous wattage in a sealed, unventilated enclosure.

Buying Checklist

• ✓ My power supply outputs DC 12-18V (do not use 24V).
• ✓ My power source delivers at least 3A continuous (5A or more recommended for dynamic audio).
• ✓ I need a 2.1 channel system (left, right, subwoofer) rather than four full-range channels.
• ✓ My speakers have impedances between 2Ω and 8Ω.
• ✓ I understand that speaker negative leads are bridge-tied and must not be grounded or bonded together.
• ✓ I have an analog line source ready (3.5mm jack or 3-pin bare wire).
• ✓ I understand that Bluetooth is not included onboard and requires an external receiver module.
• ✓ I understand the board has only a master volume knob without tone or crossover adjustments.
• ✓ My enclosure can accommodate the 72x98x27mm heat-sink envelope and provides airflow for cooling.
• ✓ I have verified the 25.4x48.26mm M3 mounting pattern against my chassis layout.
